Trail Tech Wheel Speed Sensor Magnet Kit

Trail Tech Wheel Speed Sensor Magnet Kit

The Trail Tech Wheel Speed Sensor Magnet Kit is a vehicle-specific component designed to enable accurate wheel speed and distance readings for your Trail Tech digital gauge system. It provides the magnetic trigger needed to detect wheel rotation, allowing your gauge to display speed, distance, and ride time data.

Engineered as a direct-fit solution for Yamaha Z400, KFX400, and Rhino ATV applications, this kit supplies the correctly sized magnet and mounting hardware to integrate with your vehicle’s brake rotor or wheel assembly. It is ideal as a replacement part or when adding a Trail Tech speed-sensing gauge to your machine.

Compatible with Endurance II, Vapor, Voyager, and other Trail Tech systems that rely on wheel-mounted speed detection, this genuine component ensures reliable signal generation with every wheel revolution.

Features

• Function: Provides the magnetic trigger required for wheel speed and distance measurement
• Application: Purpose-built for Yamaha Z400, KFX400, and Rhino ATV installations
• Compatibility: Works with Endurance II, Vapor, Voyager, and other Trail Tech speed-sensing systems
• Installation: Designed to install on the brake rotor or wheel hub following manufacturer instructions
• Care: Clean with water only; harsh chemicals may damage the finish or magnet

How It Works

The magnet is secured to the rotating portion of the wheel or brake rotor, where it passes the stationary sensor once per revolution. Each time the magnet triggers the sensor, your Trail Tech gauge registers one rotation and calculates speed and distance based on wheel circumference settings entered during setup.

Proper placement is critical — the magnet must pass close to the sensor without making contact or interfering with brake operation. Detailed installation instructions are included to guide positioning and secure attachment.

Fitment

Designed specifically for Yamaha Z400, KFX400, and Rhino ATV models. Also compatible with a broad range of additional vehicles including:

• Arctic Cat — 2000–2025 All ATV
• Can-Am — 2000–2025 All UTV, All ATV
• Honda — 2000–2025 All UTV, All ATV plus select TRX models
• Kawasaki — 2000–2025 All UTV, All ATV including KFX, Brute Force, and Teryx
• KTM — Select 2008–2010 SX and XC models
• Polaris — 2000–2025 All ATV
• Suzuki — 2000–2025 All ATV
• Yamaha — 2000–2025 All UTV, All ATV plus Blaster, Big Bear, Banshee, Warrior, and Grizzly

Additional makes and models supported — see manufacturer details for full listing.

Includes

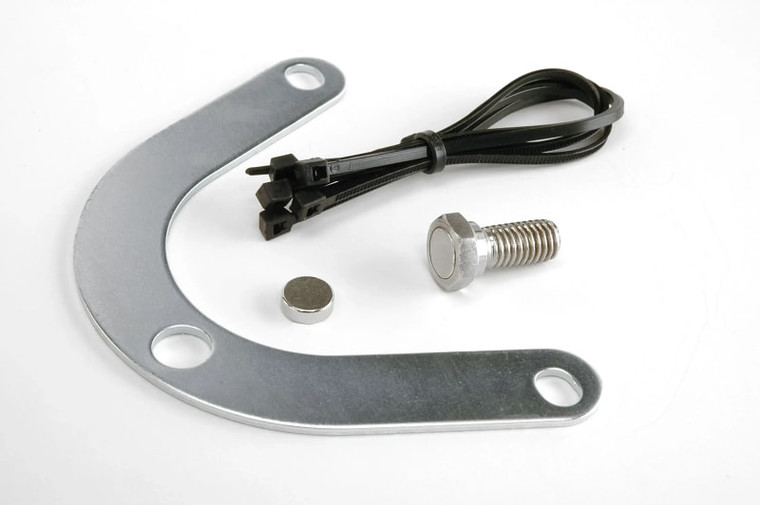

• Wheel speed sensor magnet and mounting hardware

Why It Stands Out

As a genuine Trail Tech part, this magnet kit is engineered to precise dimensions and magnetic strength, ensuring consistent sensor triggering and accurate speed readings. Vehicle-specific design means it fits without improvisation or modification where universal kits may not seat securely.

Whether replacing a lost magnet or adding speed sensing to a new build, this kit delivers the reliable performance your Trail Tech system depends on.
