Polaris RZR Hide-Away Digital Media Receiver - Rockford Fosgate
Rockford Fosgate
$544.25
$659.95
(You save
$115.70
)
(No reviews yet)
Write a Review
Rockford Fosgate
Polaris RZR Hide-Away Digital Media Receiver - Rockford Fosgate
Polaris RZR Hide-Away Digital Media Receiver - Rockford Fosgate

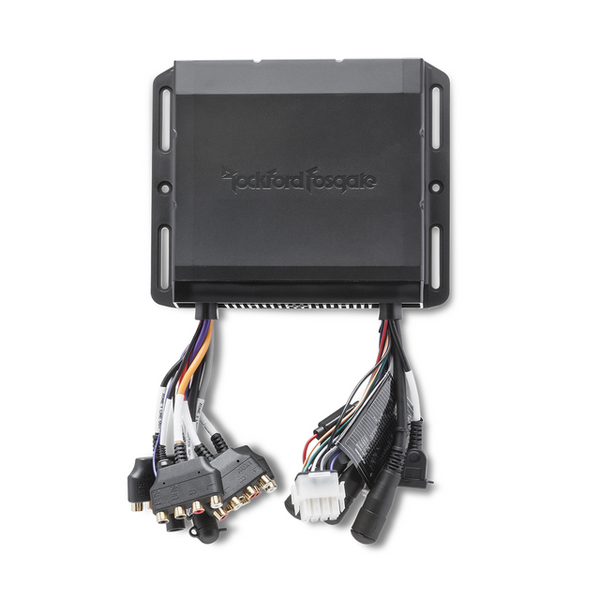

The Rockford Fosgate PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.
Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Android, Made for iPod, Dual USB Input w/ Video Playback, BLUETOOTH avrcp 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Preouts, 2 Channel Zone 3&4 4V Preouts, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor
Hide-Away Digital Media Receiver Features:
- Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
- Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
- Made for iPhone apple certified
- Bluetooth, A2DP only, AVRCP 1.4
- Simple secure pairing bluetooth profile for android & iOS
- Display album art from connected iPhones on the radios display
- Folder browsing via BT connected iPhones
- 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
- Internal power amplifier 4x50w 2 ohm stable
- Selectable high pass and low pass crossover points for each independent zone
- Selectable crossover slopes of 12dB or 24 dB for each independant zone
- Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
- Adjustable input gain for each source
- Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
- Integrated voltage gauge w/ low voltage alert
- Wired remote ready (up to 3 remotes)
- Rear aux-in (L/R)
- External steering wheel remote control interface compatible
- External trigger input to activate reverse camera mode
- Wired illumination control
- Optional CAN-BUS transceiver ready (PMX-CAN)
- Rear USB with 1a charging (supports album art on USB connected iPhones)
- Epoxy coated circuit board
- Upgradeable Firmware and Bluetooth Software via USB
- IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
- CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
- Compatible with a Multi-Function Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
- Antenna not included
- 2 Year Warranty
Specifications:
- FM TUNER Frequency Range - 87.5 MHz - 107.9 MHz
- RCA Output Voltage - 4V
- Operating Voltage - 10.5V - 16V
- Fuse Rating - 15A
- Dimensions - (HxWxD) H4.25 x W8.3 x D2.2 (108mm x 211mm x 56mm)
- USB Capacity - 32Gb max, 999 Folders max, 999 Songs max
- MEDIA PLAYER - Audio Format Compatibility
- MP3
- WMA
- FLAC
- AAC
- DRM
- Clock - No
- Speaker Outputs - Yes
- Device Type - Digital-Media Black Box
- Pandora® Internet Radio - Yes
- WB TUNER Frequency Range - 162.40 - 162.55
- Number Of Presets - 18 FM / 12 AM / 6 WB
- USB Version - 2.0
- AUX Input - Yes
- USB Charging - Yes
- Steering Wheel Control Ready - Yes
- Apple®/Android Compatible - Yes
- Multi-Zone/Multi-Source - Yes
- AM TUNER Frequency Range - 530 kHz - 1710 kHz
- RCA Output Impedance - 500„¦
- Speaker Impedance - 2-Ohms
- Power Output - CEA-2006 Power Rating 25W x 4 @ 4„¦ RMS ‰¤1.0% THD+N
- Android Compatibility - Bluetooth® Only
- SPEAKER OUTPUTS - YES
- RCA OUTPUTS - Display Size
- SiriusXM-Ready® - Yes - Requires SXV300
- Bluetooth® - Yes 3.0+EDR, A2DP 1.3
- USB Output Current - 1A
- Frequency Response - 20 Hz - 20 kHz
Compatible Remotes:
- PMX-8DH (25-ft. max cable to PMX-8BB)
- PMX-1R
- PMX-0R
- The PMX-8BB is compatible with (1) PMX-8DH and combination of (3) PMX-1R and/or PMX-0R remotes, 100 ft Total Wired Distance
- When using a PMX-8DH as your main display, it will not work with an extension cable longer than 25-feet in length. The PMX-8DH already comes with a 10 foot cable (PMX10C) in the box. If you require a longer extension cable, you may use the PMX16C or PMC25C.s
| RZR Vehicle (2 Seater) | 2026 RZR Pro R | 2026 RZR Pro S | 2026 RZR Pro XP | 2026 RZR Trail | 2026 RZR Trail S | 2026 RZR XP 1000 | 2025 RZR Pro R | 2025 RZR Pro S | 2025 RZR Pro XP | 2025 RZR Trail | 2025 RZR Trail S | 2025 RZR XP 1000 | 2024 RZR Pro R | 2024 RZR Pro XP | 2024 RZR Trail | 2024 RZR Trail S | 2024 RZR Turbo R | 2024 RZR XP 1000 | 2023 RZR Pro R | 2023 RZR Pro XP | 2023 RZR Trail | 2023 RZR Trail S | 2023 RZR Turbo R | 2023 RZR XP 1000 | 2022 RZR 570 | 2022 RZR Pro R | 2022 RZR Pro XP | 2022 RZR Trail | 2022 RZR Trail S | 2022 RZR Trail S 900 | 2022 RZR Turbo R | 2022 RZR Turbo S | 2022 RZR XP 1000 | 2021 RZR 570 | 2021 RZR Pro XP | 2021 RZR Trail | 2021 RZR Trail S | 2021 RZR Trail S 900 | 2021 RZR XP 1000 | 2021 RZR XP Turbo | 2021 RZR XP Turbo S | 2020 RZR 570 | 2020 RZR 900 | 2020 RZR Pro XP | 2020 RZR XP 1000 | 2020 RZR XP Turbo | 2020 RZR XP Turbo S | 2020 RZR-S 1000 | 2020 RZR-S 900 | 2019 RZR 570 | 2019 RZR 900 | 2019 RZR XP 1000 | 2019 RZR XP Turbo | 2019 RZR XP Turbo S | 2019 RZR-S 1000 | 2019 RZR-S 900 | 2018 RZR 570 | 2018 RZR 900 | 2018 RZR 900 XC | 2018 RZR XP 1000 | 2018 RZR XP Turbo | 2018 RZR-S 1000 | 2018 RZR-S 900 | 2017 RZR 570 | 2017 RZR 900 | 2017 RZR 900 XC | 2017 RZR XP 1000 | 2017 RZR XP Turbo | 2017 RZR-S 1000 | 2017 RZR-S 900 | 2016 RZR 570 | 2016 RZR 900 | 2016 RZR 900 XC | 2016 RZR XP 1000 | 2016 RZR XP Turbo | 2016 RZR-S 1000 | 2016 RZR-S 900 | 2015 RZR 570 | 2015 RZR 900 | 2015 RZR 900 XC | 2015 RZR XP 1000 | 2015 RZR-S 900 | 2014 RZR 570 | 2014 RZR 800 | 2014 RZR XP 1000 | 2014 RZR XP 900 | 2014 RZR-S 800 |
|---|---|
| RZR 4 Vehicle (4 Seater) | 2026 RZR 4 Pro R | 2026 RZR 4 Pro S | 2026 RZR 4 Pro XP | 2026 RZR 4 XP 1000 | 2025 RZR 4 Pro R | 2025 RZR 4 Pro S | 2025 RZR 4 Pro XP | 2025 RZR 4 XP 1000 | 2024 RZR 4 Pro R | 2024 RZR 4 Pro XP | 2024 RZR 4 Turbo R | 2024 RZR 4 XP 1000 | 2023 RZR 4 Pro R | 2023 RZR 4 Pro XP | 2023 RZR 4 Turbo R | 2023 RZR 4 XP 1000 | 2022 RZR 4 Pro R | 2022 RZR 4 Pro XP | 2022 RZR 4 Turbo R | 2022 RZR 4 Turbo S | 2022 RZR 4 XP 1000 | 2021 RZR 4 Pro XP | 2021 RZR 4 XP 1000 | 2021 RZR 4 XP Turbo | 2021 RZR 4 XP Turbo S | 2020 RZR 4 Pro XP | 2020 RZR 4 S 1000 | 2020 RZR 4 XP 1000 | 2020 RZR 4 XP Turbo | 2020 RZR 4 XP Turbo S | 2019 RZR 4 S 1000 | 2019 RZR 4 XP 1000 | 2019 RZR 4 XP Turbo | 2019 RZR 4 XP Turbo S | 2018 RZR 4 XP 1000 | 2018 RZR 4 XP 900 | 2018 RZR 4 XP Turbo | 2017 RZR 4 XP 1000 | 2017 RZR 4 XP 900 | 2017 RZR 4 XP Turbo | 2016 RZR 4 XP 1000 | 2016 RZR 4 XP 900 | 2016 RZR 4 XP Turbo | 2015 RZR 4 XP 1000 | 2015 RZR 4 XP 900 | 2014 RZR 4 800 | 2014 RZR 4 XP 1000 | 2014 RZR 4 XP 900 |
| Polaris RZR RS1 | 2022 RZR RS1 | 2021 RZR RS1 | 2020 RZR RS1 | 2019 RZR RS1 | 2018 RZR RS1 |
| Polaris ACE Vehicle | 2020 Polaris ACE 500 | 2020 Polaris ACE 570 | 2020 Polaris ACE 900 | 2019 Polaris ACE 500 | 2019 Polaris ACE 570 | 2019 Polaris ACE 900 | 2018 Polaris ACE 500 | 2018 Polaris ACE 570 | 2018 Polaris ACE 900 | 2017 Polaris ACE 500 | 2017 Polaris ACE 570 | 2017 Polaris ACE 900 | 2016 Polaris ACE 325 | 2016 Polaris ACE 570 | 2016 Polaris ACE 900 | 2015 Polaris ACE 325 | 2015 Polaris ACE 570 | 2014 Polaris ACE 325 |
| RZR 170 (Youth) | 2026 RZR 200 | 2025 RZR 200 | 2024 RZR 200 | 2023 RZR 200 | 2022 RZR 200 | 2021 RZR 170 | 2020 RZR 170 | 2019 RZR 170 | 2018 RZR 170 | 2017 RZR 170 | 2016 RZR 170 | 2015 RZR 170 | 2014 RZR 170 |
