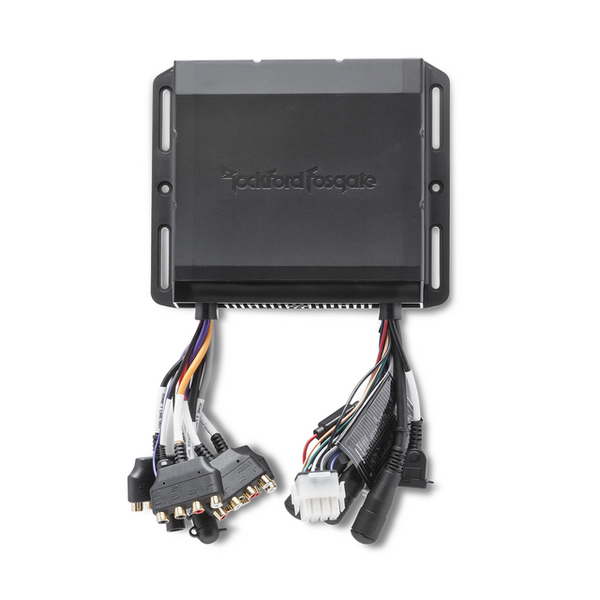

Polaris Ranger Hide-Away Digital Media Receiver - Rockford Fosgate

The Rockford Fosgate PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.

Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Android, Made for iPod, Dual USB Input w/ Video Playback, BLUETOOTH avrcp 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Preouts, 2 Channel Zone 3&4 4V Preouts, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor

Hide-Away Digital Media Receiver Features:

• Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
• Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
• Made for iPhone apple certified
• Bluetooth, A2DP only, AVRCP 1.4
• Simple secure pairing bluetooth profile for android & iOS
• Display album art from connected iPhones on the radios display
• Folder browsing via BT connected iPhones
• 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
• Internal power amplifier 4x50w 2 ohm stable
• Selectable high pass and low pass crossover points for each independent zone
• Selectable crossover slopes of 12dB or 24 dB for each independant zone
• Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
• Adjustable input gain for each source
• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
• Integrated voltage gauge w/ low voltage alert
• Wired remote ready (up to 3 remotes)
• Rear aux-in (L/R)
• External steering wheel remote control interface compatible
• External trigger input to activate reverse camera mode
• Wired illumination control
• Optional CAN-BUS transceiver ready (PMX-CAN)
• Rear USB with 1a charging (supports album art on USB connected iPhones)
• Epoxy coated circuit board
• Upgradeable Firmware and Bluetooth Software via USB
• IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
• CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
• Compatible with a Multi-Function Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
• Antenna not included
• 2 Year Warranty

Specifications:

• FM TUNER Frequency Range - 87.5 MHz - 107.9 MHz
• RCA Output Voltage - 4V
• Operating Voltage - 10.5V - 16V
• Fuse Rating - 15A
• Dimensions - (HxWxD) H4.25" x W8.3" x D2.2" (108mm x 211mm x 56mm)
• USB Capacity - 32Gb max, 999 Folders max, 999 Songs max
• MEDIA PLAYER - Audio Format Compatibility
• MP3
• WMA
• FLAC
• AAC
• DRM
• Clock - No
• Speaker Outputs - Yes
• Device Type - Digital-Media Black Box
• Pandora® Internet Radio - Yes
• WB TUNER Frequency Range - 162.40 - 162.55
• Number Of Presets - 18 FM / 12 AM / 6 WB
• USB Version - 2.0
• AUX Input - Yes
• USB Charging - Yes
• Steering Wheel Control Ready - Yes
• Apple®/Android Compatible - Yes
• Multi-Zone/Multi-Source - Yes
• AM TUNER Frequency Range - 530 kHz - 1710 kHz
• RCA Output Impedance - 500„¦
• Speaker Impedance - 2-Ohms
• Power Output - CEA-2006 Power Rating 25W x 4 @ 4„¦ RMS ‰¤1.0% THD+N
• Android Compatibility - Bluetooth® Only
• SPEAKER OUTPUTS - YES
• RCA OUTPUTS - Display Size
• SiriusXM-Ready® - Yes - Requires SXV300
• Bluetooth® - Yes 3.0+EDR, A2DP 1.3
• USB Output Current - 1A
• Frequency Response - 20 Hz - 20 kHz

Compatible Remotes:

• PMX-8DH (25-ft. max cable to PMX-8BB)
• PMX-1R
• PMX-0R
• The PMX-8BB is compatible with (1) PMX-8DH and combination of (3) PMX-1R and/or PMX-0R remotes, 100 ft Total Wired Distance
• When using a PMX-8DH as your main display, it will not work with an extension cable longer than 25-feet in length. The PMX-8DH already comes with a 10 foot cable (PMX10C) in the box. If you require a longer extension cable, you may use the PMX16C or PMC25C.s
