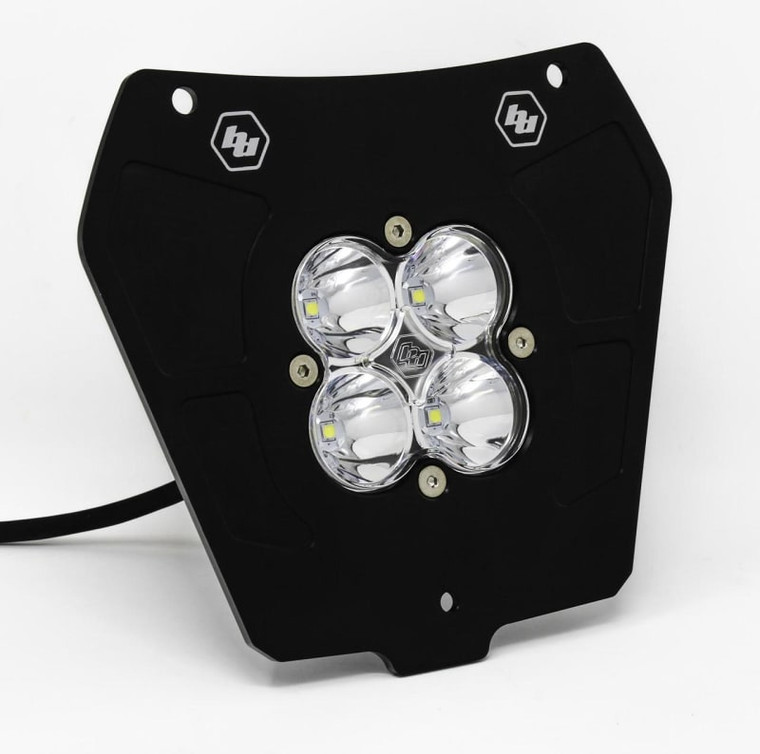

Baja Designs 2014-2016 KTM 250 / 350 / 450 / 500 Squadron Sport Headlight Kit (D/C)

The Baja Designs 2014-2016 KTM 250 / 350 / 450 / 500 Squadron Sport Headlight Kit (D/C) is a high-performance LED headlight upgrade engineered for compatible KTM motorcycles equipped with a DC electrical system. Built around the compact Squadron Sport LED light, this kit significantly improves nighttime visibility while maintaining a vehicle-specific fit and straightforward installation.

The Squadron Sport features a Driving/Combo beam pattern that provides an effective balance of long-distance projection and wide foreground illumination. Baja Designs incorporates its proprietary uService, ClearView, MoistureBlock, CopperDrive, and 5000K Daylight technologies to deliver reliable performance in demanding off-road conditions.

For electric-start motorcycles requiring a stator modification or rewind, Baja Designs recommends the appropriate switch, wiring harness, or rectifier/regulator as needed. Detailed stator modification instructions and applicable hardware are included for motorcycles that require the conversion.

Features

• Squadron Sport LED: Compact, high-output LED headlight.
• Driving/Combo Beam: Long-range and wide-area illumination.
• Replaceable Optics: uService lens and optic system.
• Advanced Technologies: ClearView, MoistureBlock, CopperDrive, and 5000K Daylight.
• DC System Design: Designed for compatible DC electrical systems.

Lighting Performance

The Squadron Sport produces 3,162 lumens while drawing just 30.36 watts, providing efficient, high-output lighting for off-road riding. Its Driving/Combo beam pattern delivers excellent distance while maintaining broad foreground coverage for improved visibility on varied terrain.

• Driving/Combo beam pattern
• 3,162 lumens output
• 30.36-watt power draw
• 5000K daylight color temperature

Durable Construction

The light features a powder-coated cast aluminum housing, hard-coated polycarbonate lens, stainless steel mounting hardware, and built-in overvoltage protection. It exceeds MIL-STD-810G durability testing and meets IP69K waterproof and IK10 impact resistance standards for dependable operation in demanding environments.

Installation Information

This D/C kit is intended for motorcycles equipped with a compatible DC electrical system. Electric-start models requiring a stator modification or rewind may also require a switch and wiring harness kit, while some applications require a new rectifier/regulator. Detailed instructions and installation hardware are included for motorcycles requiring stator modification.

Specifications

• Product Type: Squadron Sport LED Headlight Kit (D/C)
• Light Type: Squadron Sport LED Light Pod
• Beam Pattern: Driving/Combo
• Description: Driving/Combo; Clear
• Brightness: 3,162 Lumens
• Power Draw: 30.360W
• Current Draw: 2.200A
• Lighting Quantity: 4 LEDs
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Average Rated Life: 49,930 Hours
• Housing Material: Powder Coated Cast Aluminum
• Housing Color: Black
• Lens Material: Hardcoated Polycarbonate
• Lens Color: Clear
• Bezel Material: Powder Coated Cast Aluminum
• Overvoltage Protection: Built-In
• Mounting Hardware: Stainless Steel Included
• Wiring Harness Included: No
• Water Resistance: IP69K
• Impact Resistance: IK10 Compliant
• Durability: Exceeds MIL-STD-810G
• Dimensions (L x H x D): 3.07 x 3.07 x 2.77 in.
• Weight: 0.75 lbs.

Why It Stands Out

The Baja Designs KTM 250 SX-F/XC-F/XCF-W / 350 SX-F/XC-F/XCF-W / 450 XC-W / 500 XC-W Squadron Sport Headlight Kit (D/C) combines compact dimensions, durable construction, and efficient LED performance into a vehicle-specific lighting upgrade. With advanced optical technologies and a robust housing, it delivers dependable illumination for demanding off-road riding conditions.

Fitment

• 2014-2016 KTM 250 SX-F
• 2014-2016 KTM 250 XC-F
• 2014-2016 KTM 250 XCF-W
• 2016 KTM 250 SX-F Factory Edition
• 2014-2016 KTM 350 SX-F
• 2014-2016 KTM 350 XC-F
• 2014-2016 KTM 350 XCF-W
• 2016 KTM 350 XCF-W Six Days
• 2014-2016 KTM 450 XC-W
• 2014-2016 KTM 500 XC-W

Includes

• Squadron Sport LED Headlight
• Vehicle-Specific Mounting Hardware
• Installation Instructions
• Hardware for applicable stator modifications
