2011-2013 Ktm 250 / 350 / 450 / 500 Squadron Sport Headlight Kit (d/c) - Baja Designs

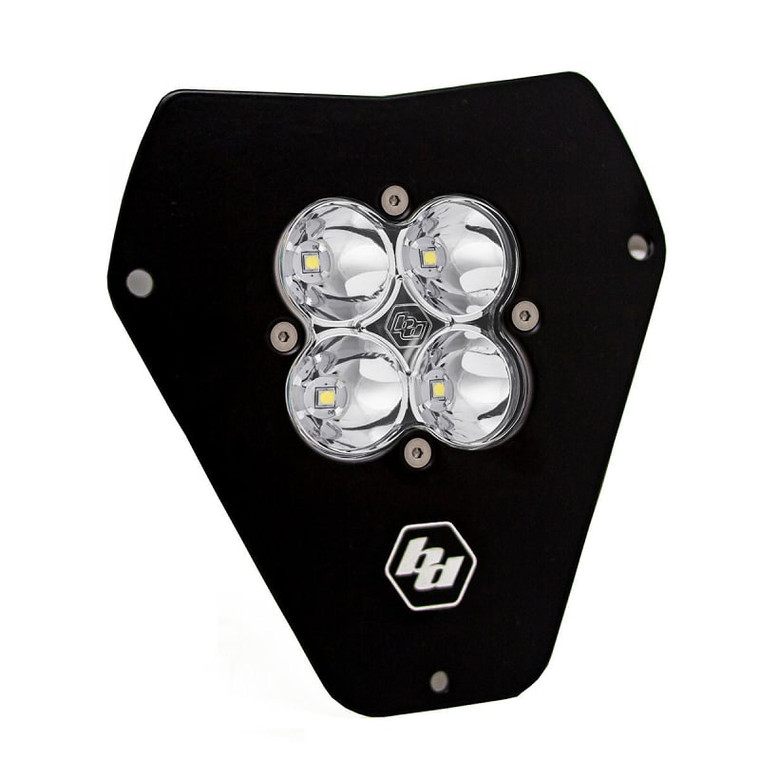

Baja Designs 2011-2013 KTM 250 / 350 / 450 / 500 Squadron Sport Headlight Kit (D/C)

The Baja Designs 2011-2013 KTM 250 / 350 / 450 / 500 Squadron Sport Headlight Kit (D/C) is a vehicle-specific LED headlight upgrade engineered for compatible KTM motorcycles equipped with a DC electrical system. Featuring the compact Squadron Sport LED light, this kit provides a substantial improvement in nighttime visibility while maintaining a clean, factory-style installation.

The Squadron Sport utilizes a Spot beam pattern for focused long-distance illumination while incorporating Baja Designs' exclusive technologies, including uService, ClearView, MoistureBlock, CopperDrive, and a 5000K daylight color temperature. These features work together to deliver dependable lighting performance in demanding off-road environments.

For electric-start motorcycles requiring a stator modification or rewind, Baja Designs notes that a compatible switch, wiring harness kit, or rectifier/regulator may be required depending on the application. Detailed stator modification instructions and applicable hardware are included when required.

Features

• Squadron Sport LED: Compact, high-output LED headlight.
• Spot Beam Pattern: Focused long-distance illumination.
• Replaceable Optics: uService lens and optic system.
• Advanced Technologies: ClearView, MoistureBlock, CopperDrive, and 5000K Daylight.
• Vehicle-Specific Design: Engineered for compatible KTM motorcycles.

Focused Lighting Performance

The Squadron Sport produces 3,162 lumens while drawing just 30.36 watts. Its Spot beam pattern delivers concentrated forward illumination for increased visibility during high-speed off-road riding and low-light conditions.

• Spot beam pattern
• 3,162 lumens output
• 30.360-watt power draw
• 5000K daylight color temperature

Built for Off-Road Durability

The light features a powder-coated cast aluminum housing, hard-coated polycarbonate lens, stainless steel mounting hardware, and integrated overvoltage protection. It exceeds MIL-STD-810G durability testing while meeting IP69K water resistance and IK10 impact resistance standards.

Installation Information

This D/C headlight kit is intended for compatible KTM motorcycles equipped with a DC electrical system. Electric-start motorcycles requiring stator modifications may also require a switch, wiring harness kit, or rectifier/regulator depending on the application. Installation instructions and applicable hardware are included for motorcycles requiring stator modification.

Specifications

• Product Type: Squadron Sport LED Light Pod
• Beam Pattern: Spot
• Description: Spot; Clear
• Brightness: 3,162 Lumens
• Power Draw: 30.360W
• Current Draw: 2.200A
• Lighting Quantity: 4 LEDs
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Average Rated Life: 49,930 Hours
• Housing Material: Powder Coated Cast Aluminum
• Housing Color: Black
• Lens Material: Hardcoated Polycarbonate
• Lens Color: Clear
• Bezel Material: Powder Coated Cast Aluminum
• Overvoltage Protection: Built-In
• Mounting Hardware: Stainless Steel Included
• Wiring Harness Included: No
• Water Resistance: IP69K
• Impact Resistance: IK10 Compliant
• Durability: Exceeds MIL-STD-810G
• Dimensions (L x H x D): 3.07 x 3.07 x 2.77 in.
• Weight: 0.75 lbs.

Why It Stands Out

The Baja Designs KTM 250 / 350 / 450 / 500 Squadron Sport Headlight Kit (D/C) combines a compact design, focused Spot beam output, and rugged construction into a vehicle-specific lighting upgrade. Its durable housing, advanced LED technologies, and straightforward installation make it well suited for demanding off-road applications.

Fitment

• 2011-2013 KTM 250 SX-F
• 2011-2013 KTM 250 XC-F
• 2011-2013 KTM 250 XCF-W
• 2012-2013 KTM 350 EXC-F
• 2011-2013 KTM 350 SX-F
• 2011-2013 KTM 350 XC-F
• 2012-2013 KTM 350 XCF-W
• 2008-2012 KTM 450 XC-W
• 2012-2013 KTM 500 EXC
• 2012-2013 KTM 500 EXC Six Days

Includes

• Squadron Sport LED Headlight
• Installation Instructions
• Mounting Hardware
• Applicable stator modification hardware (when required)
