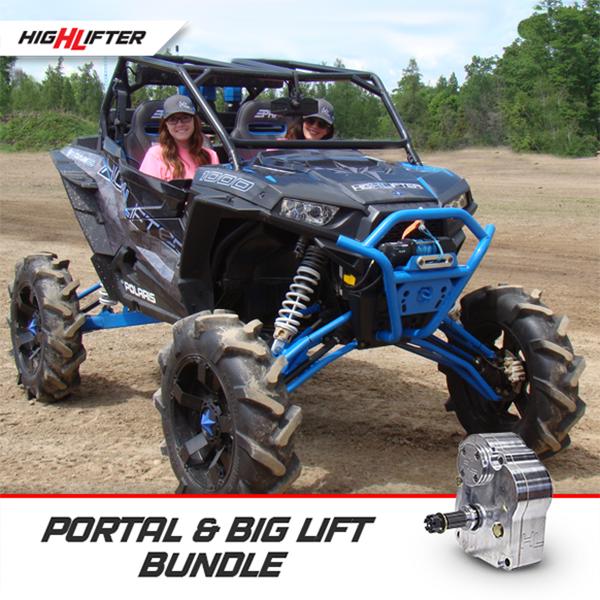

Polaris RZR XP 1000 Bundle - 4" Portals & 8" Big Lift - High Lifter

High Lifter Portal Gear Lift Features:

• 30% Gear Reduction - Gives you greater low-end torque for the trail
• Power on Tap - More power to the ground with less engine wind up
• Lift It Up - Gain additional 4" lift plus improved track width
• Built Tough - Built with 6061 Aluminum and designed for the toughest terrain you can throw at them
• Great Ride - Get all the benefits of added torque and better clearance without compromising factory ride or suspension angles
• Camber adjusting shims - Adding or removing shims can adjust camber by -1.25° to a +2°
• Perfect Machining - We stand behind the quality of our product 100%. The kits have been specially designed and machined to fit your ride perfectly
• Slotted Brake Rotors - Slots carved into the flat metal surface move gas, heat and water away from the surface of these rotors to improve braking performance

Wheel Requirements:

• 14 or larger
• 14 factory wheels must run 2 spacer
• 14 & 15 can not exceed 4-1/2 backspacing
• 16 & larger can not exceed 5 backspacing

Polaris RZR 1000 XP 8 Big Lift

Bigger. Badder. BOLDER. Take your SXS to the edge with High Lifters 8 Big Lift Kit. Increase your ground clearance and make room for larger tires to dig deep and ride hard in most any terrain. Our engineers and staff have spent over 20 years perfecting the ultimate lift kit. The product? The Big Lift Kit is even easier to install with a bolt-on application that consistently measures truer over competitor products.

Each lift kit comes with four Outlaw DHT XL axles that are custom tuned for use with the 8" High Lifter Lift Kit.

Outlaw DHT XL Axle:

• Dual heat treatments on the housings to improve toughness against shock loads without compromising bearing surfaces and long term life
• Oversized CV joint housings to increase strength
• Housings and bars made from 4340 Chromoly steel
• Puncture-resistant boots which are durable in high and low temperature climates
• Molybdenum disulfide, anti-oxidation, rustproof, and high-performance

This 8 lift kit package includes the following components:

• Heavy duty laser cut rear upper lift/shock relocation brackets
• Four custom heavy duty Max Clearance Control Arms crafted from 1 1/4 x.120 wall DOM tubing, heavy duty support gussets, and shock mounts
• Full set of custom heavy duty Max Clearance Radius Bars with Spherical Bearings
• Front and rear heavy duty High Lifter Springs
• Four Outlaw DHT XL Axles
• Additional brake line
• Steering stops
• All required hardware and brackets
• Detailed instructions with step-by-step photos

Note: This kit does not come with trailing arms.

Note: This kit uses 12mm bolts to secure the radius bars to the frame and hub.

Note: 2017 Polaris RZR XP 1000 models have two different types of hardware connecting the rear factory radius bars: 10mm or 12mm bolts. Before purchasing a Big Lift for your 2017 Polaris RZR, you need to determine if you have 10mm or 12mm hardware. To determine this will be as simple as finding which socket is used to remove the center bolt holding the radius to the frame. For 10mm hardware you will use a 15mm socket. For 12mm hardware you will use an 18mm socket. This kit does not fit units that have 10mm factory bolts!
