Description
Polaris Ranger UTV Ball Base for Rails (3.15" dia) - RAM Mounts

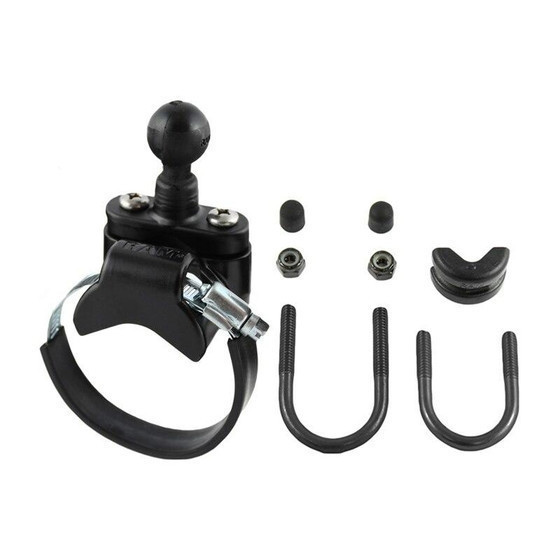

Designed for a clean installation, the RAM-B-231Z-2U base accommodates most common rail and bar sizes on UTVs. With the strap clamp safely concealed in a compact housing, you won't have to worry about exposed sharp edges or unwanted loosening. Included in the kit is a zinc-coated metal U-bolt, allowing you to modify the mount for another mounting location. The base also includes black cover caps to be placed over the exposed ends of the U-bolt.

Ball Base for Rails Features

  • Rail and bar base for UTVs includes strap clamp and U-bolt components
  • Included B size 1" RAM rubber ball allows for connection to any B size RAM double socket arm; ball and socket technology allows for near-infinite adjustability

Hardware Included:

  • (1) Strap Clamp Adapter
  • (2) 1/4"-20 x 1" Machine Screws
  • (2) 1/4"-20 Nylock Nuts
  • (1) Zinc Worm Drive Strap Clamp
  • (1) 6" Rubber Strip
  • (1) 1/4"-20 U-Bolt for .5" - 1" Rails
  • (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
  • (2) Rubber Caps
  • (1) U-Bolt Spacer

Specifications

  • Holder Dimensions:

    • Width Range: 1.875" - 3.25"
    • Depth Range: .875" max

  • Clamp Range:

    • U-Bolt: .5" - 1.25" diameter
    • Strap Clamp: 1.57" - 3.15" diameter

  • Weight Capacity:

    • Standard Use: 2 lbs
    • Heavy-Duty Use: 1 lb
FITS THE FOLLOWING VEHICLES

Mid-Size Vehicle2026 Ranger 500 | 2026 Ranger SP 570 (Includes Northstar) | 2025 Ranger SP 570 (Includes Northstar) | 2024 Ranger SP 570 (Includes Northstar) | 2023 Ranger SP 570 (Includes Northstar) | 2022 Ranger 500 | 2022 Ranger EV | 2022 Ranger SP 570 (Includes Northstar) | 2021 Ranger 500 | 2021 Ranger 570 | 2021 Ranger EV | 2020 Ranger 500 | 2020 Ranger 570 | 2020 Ranger EV | 2019 Ranger 500 | 2019 Ranger 570 | 2019 Ranger EV | 2018 Ranger 500 | 2018 Ranger 570 | 2018 Ranger EV | 2017 Ranger 500 | 2017 Ranger 570 | 2017 Ranger EV | 2016 Ranger 570 | 2016 Ranger ETX | 2016 Ranger EV | 2015 Ranger 570 | 2015 Ranger ETX | 2015 Ranger EV | 2014 Ranger 400 | 2014 Ranger 570 | 2014 Ranger 800 | 2014 Ranger EV | 2011 Ranger 400
Full-Size Vehicle2026 Ranger 1000 | 2026 Ranger XP 1000 (Includes Northstar) | 2025 Ranger 1000 | 2025 Ranger 570 | 2025 Ranger XP 1000 (Includes Northstar) | 2024 Ranger 1000 | 2024 Ranger 570 | 2024 Ranger Kinetic | 2024 Ranger XP 1000 (Includes Northstar) | 2023 Ranger 1000 | 2023 Ranger 570 | 2023 Ranger Kinetic | 2023 Ranger XP 1000 (Includes Northstar) | 2022 Ranger 1000 | 2022 Ranger 570 | 2022 Ranger XP 1000 (Includes Northstar) | 2021 Ranger 1000 | 2021 Ranger 570 | 2021 Ranger XP 1000 (Includes Northstar) | 2020 Ranger 1000 | 2020 Ranger 570 | 2020 Ranger XP 1000 (Includes Northstar) | 2019 Ranger 570 | 2019 Ranger XP 1000 (Includes Northstar) | 2019 Ranger XP 900 | 2018 Ranger 570 | 2018 Ranger Diesel | 2018 Ranger XP 1000 (Includes Northstar) | 2018 Ranger XP 900 | 2017 Ranger 570 | 2017 Ranger 6x6 800 | 2017 Ranger Diesel | 2017 Ranger XP 1000 (Includes Northstar) | 2017 Ranger XP 900 | 2016 Ranger 570 | 2016 Ranger 6x6 800 | 2016 Ranger Diesel | 2016 Ranger XP 570 | 2016 Ranger XP 900 | 2015 Ranger 570 | 2015 Ranger 6x6 800 | 2015 Ranger Diesel | 2015 Ranger XP 900 | 2014 Ranger 570 | 2014 Ranger 6x6 800 | 2014 Ranger 800 | 2014 Ranger Diesel | 2014 Ranger XP 900 | 2011 Ranger 6x6 800 | 2011 Ranger 800 | 2011 Ranger Diesel | 2010 Ranger 500 | 2010 Ranger 6x6 800 | 2010 Ranger 800
Crew Vehicle2026 Ranger Crew 1000 | 2026 Ranger Crew SP 570 (Includes Northstar) | 2026 Ranger Crew XP 1000 (Includes Northstar) | 2025 Ranger Crew 1000 | 2025 Ranger Crew 570-6 | 2025 Ranger Crew SP 570 (Includes Northstar) | 2025 Ranger Crew XP 1000 (Includes Northstar) | 2024 Ranger Crew 1000 | 2024 Ranger Crew 570-6 | 2024 Ranger Crew SP 570 (Includes Northstar) | 2024 Ranger Crew XP 1000 (Includes Northstar) | 2023 Ranger Crew 1000 | 2023 Ranger Crew 570-6 | 2023 Ranger Crew SP 570 (Includes Northstar) | 2023 Ranger Crew XP 1000 (Includes Northstar) | 2022 Ranger Crew 1000 | 2022 Ranger Crew 570-6 | 2022 Ranger Crew SP 570 (Includes Northstar) | 2022 Ranger Crew XP 1000 (Includes Northstar) | 2021 Ranger Crew 1000 | 2021 Ranger Crew 570-4 | 2021 Ranger Crew 570-6 | 2021 Ranger Crew XP 1000 (Includes Northstar) | 2020 Ranger Crew 1000 | 2020 Ranger Crew 570-4 | 2020 Ranger Crew 570-6 | 2020 Ranger Crew XP 1000 (Includes Northstar) | 2019 Ranger Crew 570-4 | 2019 Ranger Crew 570-6 | 2019 Ranger Crew 900 | 2019 Ranger Crew XP 1000 (Includes Northstar) | 2018 Ranger Crew 570-4 | 2018 Ranger Crew 570-6 | 2018 Ranger Crew 900 | 2018 Ranger Crew Diesel | 2018 Ranger Crew XP 1000 (Includes Northstar) | 2017 Ranger Crew 570-4 | 2017 Ranger Crew 570-6 | 2017 Ranger Crew 900 | 2017 Ranger Crew Diesel | 2017 Ranger Crew XP 1000 (Includes Northstar) | 2016 Ranger Crew 570-4 | 2016 Ranger Crew 570-6 | 2016 Ranger Crew 900 | 2016 Ranger Crew Diesel | 2016 Ranger Crew XP 570 | 2015 Ranger Crew 570-4 | 2015 Ranger Crew 570-6 | 2015 Ranger Crew 900 | 2015 Ranger Crew Diesel | 2014 Ranger Crew 570-4 | 2014 Ranger Crew 800 | 2014 Ranger Crew 900 | 2014 Ranger Crew Diesel | 2011 Ranger Crew 500 | 2011 Ranger Crew 800 | 2010 Ranger Crew 800
Extreme Duty2026 Ranger Crew XD 1500 (Includes Northstar) | 2026 Ranger XD 1500 (Includes Northstar) | 2025 Ranger Crew XD 1500 (Includes Northstar) | 2025 Ranger XD 1500 (Includes Northstar) | 2024 Ranger Crew XD 1500 (Includes Northstar) | 2024 Ranger XD 1500 (Includes Northstar)
General Vehicle2026 General 1000 | 2026 General 4 1000 | 2026 General 4 XP 1000 | 2026 General XP 1000 | 2025 General 1000 | 2025 General 4 1000 | 2025 General 4 XP 1000 | 2025 General XP 1000 | 2024 General 1000 | 2024 General 4 XP 1000 | 2024 General XP 1000 | 2023 General 1000 | 2023 General 4 XP 1000 | 2023 General XP 1000 | 2022 General 1000 | 2022 General 4 1000 | 2022 General 4 XP 1000 | 2022 General XP 1000 | 2021 General 1000 | 2021 General 4 1000 | 2021 General 4 XP 1000 | 2021 General XP 1000 | 2020 General 1000 | 2020 General 1000 Sport | 2020 General 4 1000 | 2020 General 4 XP 1000 | 2020 General XP 1000 | 2019 General 1000 | 2019 General 4 1000 | 2018 General 1000 | 2018 General 4 1000 | 2017 General 1000 | 2017 General 4 1000 | 2016 General 1000
