Phoenix Light Pod Lens - Rigid Industries

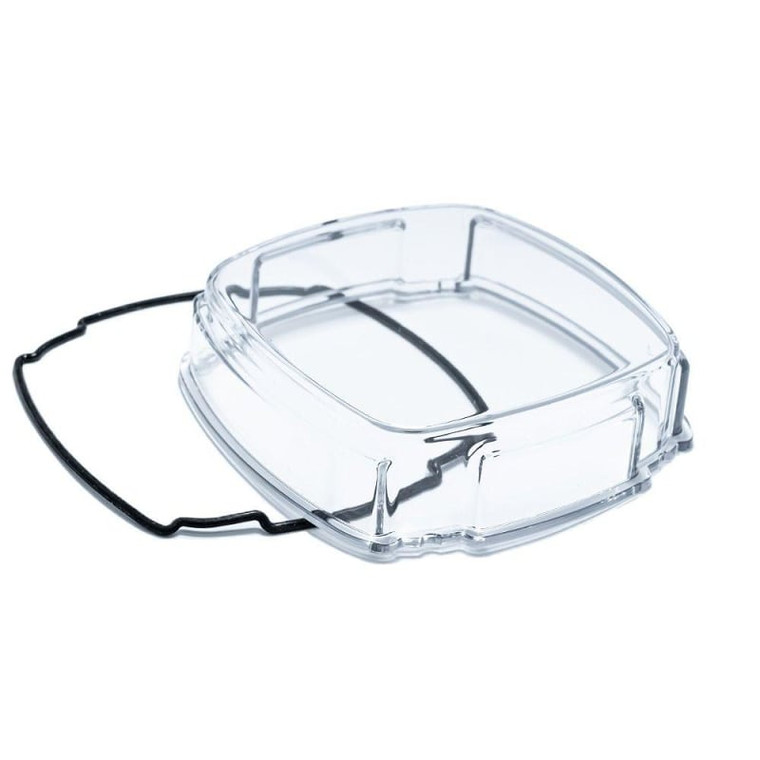

Rigid Industries Phoenix Light Pod Lens

The Rigid Industries Phoenix Light Pod Lenses provide precision-engineered optics for Phoenix and Phoenix XL light pods, allowing drivers to customize their lighting output for any off-road or auxiliary application. Each lens is crafted from durable polycarbonate plastic, designed to withstand rugged conditions while maintaining maximum light transmission and optical clarity.

For the Phoenix Light Pod, the Clear Lens delivers crisp, unobstructed output for optimal performance in clear conditions, the Drive Lens is engineered for balanced forward illumination with a wide, usable beam ideal for trail driving and general-purpose lighting, and the Combo Lens blends Spot and Drive optics to illuminate both long-distance and wide-area zones. For the Phoenix XL Pod, lenses include Clear, Drive, and Combo options, offering the same benefits with the flexibility to optimize beam patterns for trail driving, worksite use, or general off-road illumination. All lenses are designed to be easily interchangeable, so drivers can adapt to changing conditions without replacing the entire light pod.

Engineered for precision, durability, and performance, the Rigid Industries Phoenix Light Pod Lenses ensure your lighting system delivers consistent, reliable illumination. Whether you need focused distance, wide coverage, or a combination of both, these lenses enhance the versatility of your Phoenix lighting setup while maintaining Rigid Industries' legendary toughness.

Features

• Clear Lens for Phoenix Pod light designed for maximum light transmission
• The Clear lens delivers crisp, unobstructed output for optimal performance in clear conditions
• Drive Lens for Phoenix Pod light engineered for balanced forward illumination
• The Drive lens provides a wide, usable beam ideal for trail driving and general-purpose lighting
• Combo Lens for Phoenix Pod light blending distance and width.
• The Combo lens combines Spot and Drive optics to fill multiple lighting zones at once.
• Easily adapt to the beam pattern you need
• Durable Polycarbonate Plastic

Includes

• Clear Lens - (1) Replacement Clear Lens and gasket to ensure a secure, weather tight seal
• Drive Lens - (1) Replacement Clear Lens and gasket to ensure a secure, weather tight seal
• Combo Lens - (1) Replacement Clear Lens and gasket to ensure a secure, weather tight seal
• XL Clear Lens - (1) Replacement Clear Lens and gasket to ensure a secure, weather tight seal
• XL Drive Lens - (1) Replacement Clear Lens and gasket to ensure a secure, weather tight seal
• XL Combo Lens - (1) Replacement Clear Lens and gasket to ensure a secure, weather tight seal

Specifications

Clear Lens

• Size: 5"
• Beam Category: SPOT
• Lux @10m: 1554
• Beam Distance @ 1 LUX: 394
• Beam Distance @ .25 LUX: 788
• Peak Beam Intensity(cd): 155379
• Horizontal Beam Angle: 19.7
• Vertical Beam Angle: 16.5

Drive Lens

• Size: 5"
• Beam Category: DRIVING
• Lux @10m: 479
• Beam Distance @ 1 LUX: 219
• Beam Distance @ .25 LUX: 438
• Peak Beam Intensity(cd): 47893
• Horizontal Beam Angle: 44.6
• Vertical Beam Angle: 21.7

Combo Lens

• Size: 5"
• Beam Category: COMBO
• Lux @10m: 1021
• Beam Distance @ 1 LUX: 320
• Beam Distance @ .25 LUX: 639
• Peak Beam Intensity(cd): 102107
• Horizontal Beam Angle: 32.8
• Vertical Beam Angle: 18.5

XL Clear Lens

• Size: 7"
• Beam Category: SPOT
• Lux @10m: 2216
• Beam Distance @ 1 LUX: 471
• Beam Distance @ .25 LUX: 941
• Peak Beam Intensity(cd): 221579
• Horizontal Beam Angle: 20
• Vertical Beam Angle: 15.8

XL Drive Lens

• Size: 7"
• Beam Category: DRIVING
• Lux @10m: 673
• Beam Distance @ 1 LUX: 260
• Beam Distance @ .25 LUX: 519
• Peak Beam Intensity(cd): 67322
• Horizontal Beam Angle: 45.5
• Vertical Beam Angle: 21.1

XL Combo Lens

• Size: 7"
• Beam Category: COMBO
• Lux @10m: 996
• Beam Distance @ 1 LUX: 316
• Beam Distance @ .25 LUX: 631
• Peak Beam Intensity(cd): 99585
• Horizontal Beam Angle: 33.4
• Vertical Beam Angle: 18.5

Fitment

• Universal
