Kfi - Kfi Quick Plow Pulley-steel Cable - 106680

kfi
SKU:
UTA-812724
|
UPC:
732388653577
$49.95
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

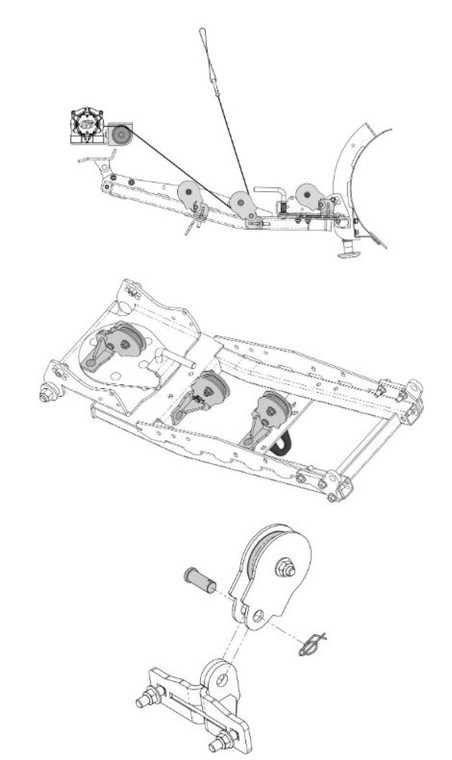

The KFI Quick Plow Pulley is a purpose-built, easy on / easy off cable-attachment pulley designed specifically to work with the KFI UTV Plow System. It improves lift geometry when raising the blade, helps manage cable angles during plowing, and can also slow the raising speed for smoother, more controlled operation.


Steel Cable Protection

Large 2-1/8" diameter steel wheel for smoother cable movement compared to standard 7/8" rollers

Curved cable groove helps prevent cable flattening that can lead to premature cable failure

Eliminates cable kinking caused by small roller contact and abrupt angle changes

Stationary steel wheel prevents pinching of steel cable


Designed for KFI Plow Systems – Engineered specifically for KFI UTV and ATV plow applications

Improves Plow Lift Geometry – Helps correct poor cable angles when raising the blade

Controlled Lift Speed – Can reduce lift speed for smoother blade movement

Seasonal Fairlead Replacement – Replaces the standard winch fairlead during plow season

Multi-Position Wheel Mounting – Allows fine-tuning for different applications and cable angles

Multi-Purpose Mounting

Fairlead-mounted or push-tube-mounted


NOTE: FOR STEEL CABLE USE ONLY


Works with:

UTV Push Tubes: #106300 / #106310 / #105635

ATV Push Tubes: #105000 (should not be needed)


Winch Compatibility

For standard-size winches with a 4.875" bolt-up pattern

For wide winches with a 6.60" bolt-up pattern, use part #106465


Recommended Accessory

12" Soft Strap #106470 recommended to attach the winch hook back to the machine
