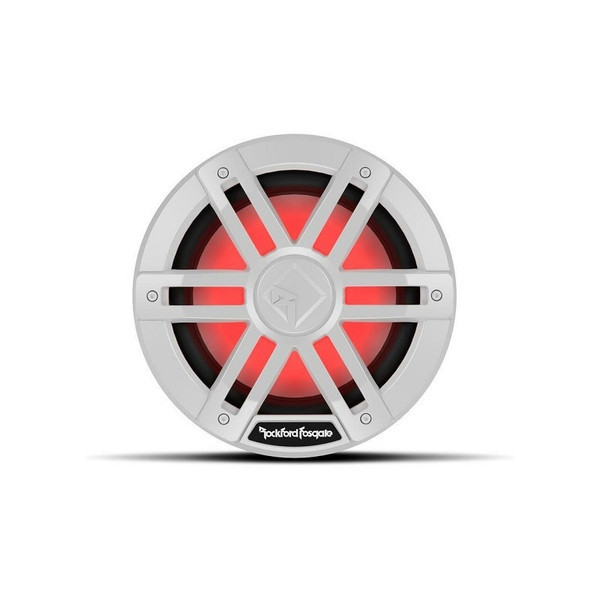

Kawasaki Mule / Teryx M1 8" DVC 4-Ohm Color Optix Marine Subwoofer White - Rockford Fosgate

The M1D4-8 Color Optix 8" DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready design and IPX6 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential.

The M1 series of Element Ready subwoofers are designed to pair with the Rockford Fosgate Color Optix Controller and RF Connect App through its Deutsch and Amphenol connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch to make changing impedance between 2 and 8 ohms as easy as flipping a switch.

Marine Subwoofer Features:

• Optically clear UV stable RGB Lighting Encapsulation
• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
• Vented motor design with water-repelling nano coated mesh screen
• 1.5" (39mm) High Temp Kapton Woofer Voice Coil Former
• Fully insulated silicone tinsel leads
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Zinc Nickel-plated Marine grade brass connection terminals
• Industrys first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• Integrated Deutsch/Amphenol connectors make wiring connections simple and error proof
• Linear Synthetic Fiber Blend Spiders
• Santoprene VAST Surround
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Co-molded surround and mineral filled polypropylene cone body
• VERSA impedance switch quickly allows series or parallel configuration without additional wiring

Specifications:

• Size - 8"
• Re (Ohms) - 6.3
• Nominal Impedance (Ohms) - 2-Ohm or 8-Ohm Switchable
• Le (mH) - 1.70
• Voice Coil Type - Dual Voice Coil
• Frequency Response - 20 Hz - 750 Hz
• SPL (dB @ 1w/1m) - 87.5
• Sd (cm2) - 227
• Woofer Displacement - 1.40 cu. ft. (0.05 Liters)
• Xmax (mm) - 7.0
• Vas (Liters) - 15.7
• Fs (Hz) - 44.5
• Qts - 0.90
• Mounting Depth - 3.43 in. (87.1 mm)
• Cutout Diameter - 7.10 in. (180.4 mm)
• Qes - 0.79
• Qms - 9.2
• Power Handling (Watts RMS) - 150 Watts RMS 600 Watts PEAK
• Magnet Weight (oz) - 17.72 oz. (0.50 Kg)
• Voice Coil Diameter - 1.5" (38.6 mm)
• Speaker Connector - Deutsch
