Kawasaki Mule / Ridge / Teryx 43" Chisel Plow/Cultivator - Kunz
Kawasaki Mule / Ridge / Teryx 43" Chisel Plow/Cultivator - Kunz

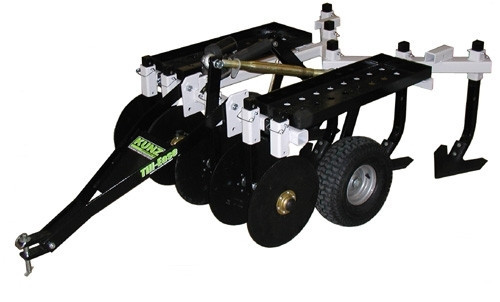

43" wide Chisel Plow / Cultivator with rigid shanks, cutting coulters and electric lift. Very aggressive top of the line ATV tillage tool capable of deep tillage work.
57" Rough Cut Mower Features:
- 43" Tillage Width
- Electric Lift with ATV Operator Controls
- 5 Front Cutting Coulters
- Rigid Shanks for Better Ground Penetration
- Till up to 6" Deep
- Narrow Chisel Points & 9" Wide Field Cultivator Sweeps Included
- Pull with ATVs, UTVs and Small Tractors
Specification | |
| Tillage Tool Type | Chisel Plow / Cultivator |
| Electric Lift | Yes (With Operator Controls) |
| Number of Cutting Coulters | 5 |
| Cutting Coulter Size | 13.5" Dia. (Plain Straight Style) (Agricultural Quality) |
| Number of Shanks | 5 |
| Shank Type | Rigid 1-3/8" Square |
| Adjustable and Quick Remove Shanks | Yes |
| Maximum Depth | 6" |
| Cultivator Sweep Size | 9" Wide (1-3/4" Bolt Spacing, 3/8" Bolt Dia.) (Agricultural Quality) |
| Reversible Point Chisel Sweep Size | 1-3/4" Wide (1-3/4" Bolt Spacing, 3/8" Bolt Dia.) (Agricultural Quality) |
| Cutting Width | 43" |
| Tongue Adjustment Method | Top Link Connecting to Lift Mechanism |
| Tongue Hitch Method | Quick Remove Pin |
| Pneumatic Tire | 15/600x6, 4 Ply Tubeless |
| Attachment Receivers | Yes |
| Weight Racks | Yes |
| Weight | 330 lbs (Without Added Weight) |
| Warranty | 1 Year Non-Commercial |
The Optional Drag Harrow Consists of the harrow and fastening pins
- Great for final seedbed preparation.
- Levels ground and helps to reduce clod size.
- Spike angle can be adjusted from vertical to horizontal with a total of 7 positions.
- Four bar link system allows the harrow to float and follow the contour of the ground.
- Drag Harrow height is adjustable with side chains.
- Weight rack for conditions where additional weight is needed.
The Optional Turning Shovel Kit consists of the 3 turning shovels and mounting hardware
- Great for doing the initial tillage in sod conditions.
- Turning Shovels act similar to a moldboard plow and turn the sod ribbon to the side.
- Easier to pull and much less troublesome than normal sweeps in sod
