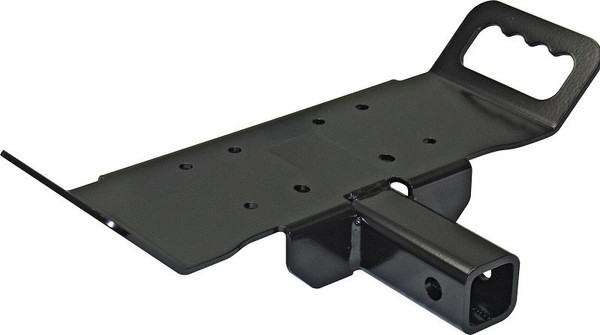

Kawasaki Mule / Ridge / Teryx 2" Receiver Winch Mount - KFI

Add loads of functionality to your Kawasaki Mule / Teryx with the 2-Inch Receiver Winch Mount by KFI. Constructed of 3/16" steel and powder-coated after a metal bead blasting, this mount features the best possible makeup and easily takes on the harsh elements of the trail. With a simple installation, the 2-Inch Receiver Winch Mount for the Kawasaki Mule / Teryx elevates the performance of your UTV to a whole new level. Simply lock in your winch, and you are ready to pull your buddy out of the mud or tow a trailer full of crops. This 2-Inch Receiver Winch Mount is made entirely in the U.S.A.

2-Inch Receiver Winch Mount Features:

• Constructed of 3/16" steel
• Metal bead blasted before powder coated for the best possible finish prep
• Powder coated black for supreme durability
• Complete installation instructions included
• All mounting hardware included
• Made in the U.S.A.

Compatible Winches:

• KFI: ST17 / S2000 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI: AS-50 / AS-50w
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
• WARN: AXON 35 / AXON 35-S / AXON 45RC
• WARN: AXON 45 / AXON 45-S / AXON 55 / AXON 55-S
  Will require Winch Spacer #101210 to fit.
• WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
• WARN: RT40 / XT40
• WARN: Vantage 4000lbs / Provantage 4500lbs
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV
• MILE MARKER : PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• MASTER LOCK : 1500lbs #2955AT
  - Requires a Fairlead with a 4.875" Bolt Pattern (available if needed #ATV-RF)
• CYCLE COUNTRY : Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND : 2-Hole Winches
• BADLAND : Standard Winches
• BADLAND : WIDE Winches
• CHAMPION : 2-Hole Winches
• CHAMPION : Standard Winches
• CHAMPION : WIDE Winches
• CHAMPION : 14001 and 14061
• SMITTYBILT : XRC 2.0
  - Requires the correct Fairlead with a 4.875" Bolt Pattern (available if needed #ATV-RF)
  - Listed Models come with incorrect ATV Roller Fairleads
• SMITTYBILT : XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
  - 4-Hole Standard (3.00" x 4.875" bolt pattern)
• KEEPER CORP. TRAKKER : KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)
  - All with 3.00" x 4.875" Bolt Pattern mount-up
  - All with 3.00" x 6.600" Bolt Pattern mount-up
• Traveller : 2-Hole Winches
• Traveller: 1078311
  - Requires a Fairlead with a 4.875" Bolt Pattern (available if needed #ATV-RF)
• Possibly Many others with the below standard Mounting patterns (call to confirm)
  - 4-Hole (3.00" x 4.875" bolt pattern with Rollers that are 4.875" bolt pattern)
  - 4-Hole WIDE (3.00" x 6.60" bolt pattern with Rollers that are 6.600" or 6.000" bolt pattern)
  - 2-Hole (3.10" with Rollers that are 4.875" bolt pattern)

NOTE:

• This mount requires a Roller Fairlead Bracket that comes with most of the winches out there. If your winch kit did not come with a fairlead bracket you will need KFI part
• This winch mount is not compatible with SuperATV Band winches
