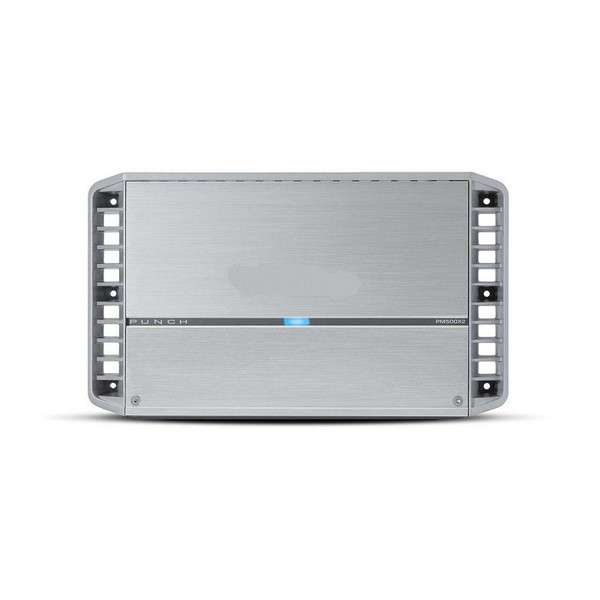

Honda Pioneer/Talon Punch Marine 500 Watt 2-Channel Amplifier - Rockford Fosgate

This is a 500 Watt 2-channel amplifier with high dynamic power using Class-A/B technology and a conformal coated pc board designed for motorsport and marine applications.

This is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.

Punch Marine 500 Watt 2-Channel Amplifier Features:

• High level input capable with Auto Turn-On circuit
• RCA pass-thru outputs
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• 12dB/octave Butterworth crossover
• On-board Punch EQ with +18dB boost @ 45Hz
• Muted turn on
• Stealth top mounted control panel
• Cast aluminum heatsink
• Short circuit protection
• Over current protection
• Marine grade 2-part epoxy coated PCB
• Marine grade stainless steel hardware

Specifications:

• Number of Channels - 2
• Total Power (Sum of Rated Power) - 500 Watts
• Rated Power (RMS Continuous Power) - 150 Watts x 2 @ 4-Ohm, 250 Watts x 2 @ 2-Ohm, 500 Watts x 1 @ 4-Ohm Bridged
• Dynamic Power (PVC/PowerCube®) - 223 Watts x 2 @ 4-Ohms 0° Res, 365 Watts x 2 @ 2-Ohms 0° Res,
• Bridgeable - Yes
• Frequency Response - 20Hz to 20kHz +/- 1.0dB
• Input Sensitivity - 150 mV - 12 V
• Circuit Topology Class - Class A/B
• Efficiency (average) - 73% @ 4-Ohm
• Total Harmonic Distortion (THD+Noise) - 4-Ohm: <1.0%, 2-Ohm: <1.0%,
• Signal Input - Hi/Low level: 1 RCA pair
• Signal Output - Low level: 1 RCA pair
• Tone Controls - Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or, Punch EQ2 Treble: 0dB to +12dB @ 12kHz, Function depends upon LP/AP/HP switch position
• Crossover Controls - High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth, Low-Pass:50Hz-250Hz @ 12dB/octave Butterworth, All-Pass: Yes
• Remote Controls - Optional Punch Level Control (PLC2) Ready
• Visual Indicators - Power/Protect/Thermal LED, Input Clip LED3, Output Clip LED1,2,3 (LED Color Legend: 1BLUE: <0.5% THD, 2VIOLET: 1% THD, 3RED: 10%+ THD)
• Power Wire Gauge - 4 AWG
• Power Input Connector - Captive C-Clamp
• Speaker Wire Gauge - 8 AWG to 18 AWG
• Speaker Output Connector - Captive C-Clamp
• Cooling - Convection
• Heatsink
• Operating Voltage - 9 - 16 VDC
• Recommended Fuse (not included) - 80 A
• Average Current Draw (13.8V Music) - 40 A
• Max. Current Draw (13.8V Sinewave) - 80 A
• Suggested Alternator - 75 A
