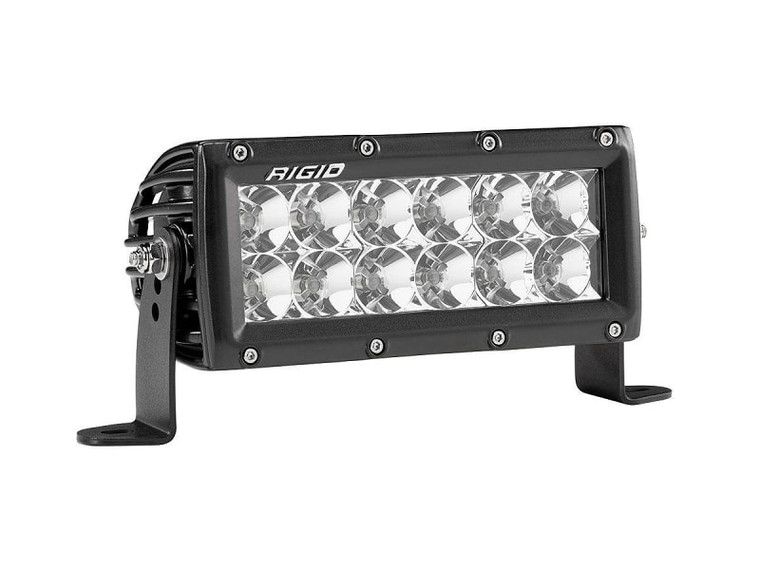

Rigid Industries E-Series PRO 6" Light Bar (Flood)

The Rigid Industries E-Series PRO 6" Light Bar (Flood) delivers compact, ultra-bright auxiliary illumination engineered to maximize short- and mid-range visibility for off-road vehicles, trucks, work equipment, and power sports applications. Featuring upgraded PRO Series LED technology, this 6-inch dual-row light bar produces up to 111% more raw lumens than previous generations while maintaining the iconic, heavy-duty housing design that defined the off-road lighting industry.

Configured with advanced flood beam optics, this light bar projects a broad, uniform pattern that saturates wide areas ahead and around the vehicle. Off-road enthusiasts, commercial workers, and overland builders looking for powerful illumination in a compact footprint will appreciate the extreme beam width that eliminates dark corners and fills in ditch lines on demanding night runs.

Encased in an extruded aluminum housing with an unbreakable polycarbonate lens, the E-Series PRO 6" Light Bar is engineered to endure harsh weather, severe vibration, and heavy impact. It offers a premium, high-output lighting upgrade built to handle the toughest outdoor conditions.

Features

• Upgraded PRO Series Performance: High-output LED technology delivers significantly increased lumen output and efficiency over legacy dual-row light bars.
• Broad Flood Optics: Designed to project a wide, smooth beam pattern for maximum lateral visibility and wide-area area illumination.
• Extruded Aluminum Housing: Built with a high-strength aluminum body that provides superior heat dissipation and structural rigidity.
• Impact-Resistant Lens: Features a durable, clear polycarbonate lens that resists yellowing, scratching, and trail debris impacts.
• Weather-Sealed Integrity: IP68-compliant construction prevents dust, moisture, and water ingress under demanding environmental conditions.

Design and Construction

Crafted for extreme durability, the E-Series PRO utilizes a rugged extruded aluminum housing engineered with oversized integrated heat sinks. This advanced thermal management system keeps the high-output LEDs running cool, preserving peak diode brightness and extending operational lifespan during long hours of continuous use.

Protected by a resilient black powder-coated finish and sealed against environmental contamination, the light bar withstands road salt, UV breakdown, and pressure washing. Oversized rubber seals and stainless steel hardware further ensure leak-free performance on the trail or job site.

Performance and Flood Optics

The flood optic configuration uses specialized optical reflectors to spread light output horizontally and vertically across a broad field of view. Rather than concentrating output into a narrow long-distance spot, these optics create a smooth sheet of high-intensity light that illuminates surrounding ground, trail hazards, and side brush.

Mounting this 6-inch light bar on front bumpers, bull bars, bed racks, or rear utility points makes it an incredibly versatile light source for low-speed trail crawling, staging equipment, or lighting up remote work areas.

Installation and Integration

The compact 6-inch form factor allows for flexible mounting in tight spaces where larger light bars cannot fit. Supplied with versatile mounting brackets and hardware, it attaches easily to flat surfaces, tab mounts, or aftermarket bumper cutouts.

The included complete wiring harness simplifies electrical installation, featuring Deutsch quick-connectors, an inline relay, a fuse holder, and a dash-mountable switch for reliable, professional electrical operation.

Specifications

• Size: 6"
• Light Shape: BAR
• Mount Type: SURFACE MOUNT
• Beam Category: FLOOD
• Voltage Range: 9V - 36V
• Current Draw at 14V (a): 5.71
• Raw Lumens: 9504
• Watts: 80
• Lux @10m: 166.16
• Beam Distance @ 1 LUX: 128.9
• Beam Distance @ .25 LUX: 257.8
• Peak Beam Intensity(cd): 16616
• Horizontal Beam Angle: 50.1
• Vertical Beam Angle: 48.8
• Product Height: 3.25 in
• Product Width: 7.2 in
• Product Depth: 3.75 in

Why It Stands Out

The Rigid Industries E-Series PRO 6" Light Bar (Flood) stands out by packing extraordinary dual-row light output into a compact, nearly indestructible housing. Built on decades of proven off-road engineering, the PRO Series update provides industry-leading brightness without increasing power draw or housing size.

With its heavy-duty aluminum construction, IP68 weather sealing, and complete wiring package, this 6-inch flood light bar delivers uncompromising illumination built to withstand the harshest environments.

Includes

• (1) E-Series PRO 6-Inch LED Light Bar (Flood Optic)
• Black Powder Coated L-Shape Brackets
• Harness & Switch w/Relay
• Mounting Hardware
