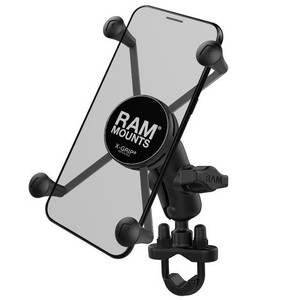

Can-Am X-Grip Large Phone Mount with Handlebar U-Bolt Base - RAM Mounts

The RAM-B-149Z-A-UN10U consists of a zinc-coated u-bolt base, short double socket arm, and universal spring-loaded X-Grip IV cradle for large phones and phablets. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM B size 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; allowing for almost infinite adjustment and perfect viewing angles. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

X-Grip Large Phone Mount with Handlebar U-Bolt Base Features:

• Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
• Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments

Specification

Holder Dimensions:

• Width Range: 1.75" - 4.5"
• Depth Range: .875" max
• Clamp Range: .5" - 1.25" diameter

Weight Capacity:

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb
