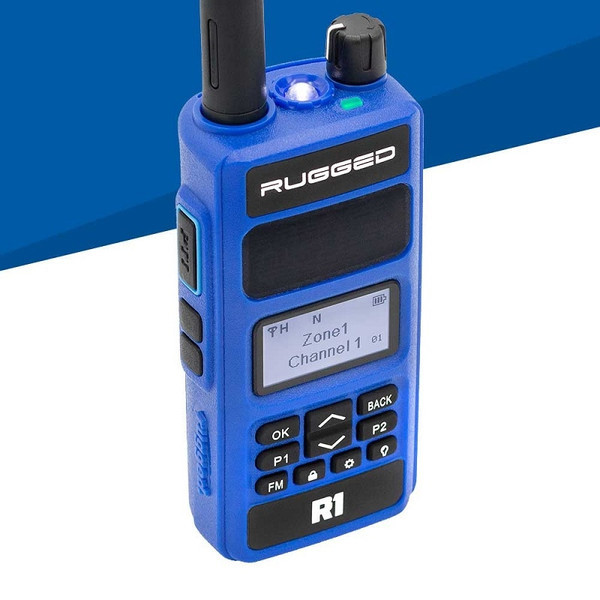

Can-Am R1 Business Band Handheld Digital and Analog - Rugged Radios

Easy to grab, hard to let go! Increase team efficiency with the perfectly-sized Rugged R1. Designed and tooled from the ground up to be a versatile solution for Work, Race, or Play - the Rugged R1 will instantly become your go-to radio.

This next-generation Rugged handheld is a workhorse! Go Further with a powerful 5 Watt transmitter, optimized receiver, and the versatility of DMR / analog cross-compatibility. DMR Digital operation allows you to take advantage of the latest technology, while Dual Band functionality lets you talk to race radios on both VHF and UHF frequencies - including our popular V3!

Always go back to your home channels with customizable channel presets. Never lose power with the included charge-on-the-go USB cable, and light the way with the R1's built-in safety flashlight.

Key Feature:

• Easy-to-Use Keypad and Interface
• Customizable Channel Preset Buttons
• Works with most business radios - including V3*

Compatibility:

This radio works with all VHF/UHF business band radios operating on the same frequencies. Radio models include, but are not limited to: RDM-DB, M1, RDH-X, R1, V3, RM60, RH5R, RDH16, as well as Icom, Motorola, Kenwood business band radios, and more.

Handheld Radio Feature:

• Works with all business analog radios and DMR Digital
• Versatile Dual Band VHF/UHF
• Crystal-clear digital DMR
• Large easy-to-read LED Display
• Easy-to-use, Intuitive Keypad and Interface
• Text Messaging on digital channels
• Dual monitor (listen to two channels at once)
• Performance-tuned antenna
• Charge-on-the-go USB cable included
• Rechargeable Li-ion battery
• Powerful 5-Watt transmitter
• Works with 2-Pin accessories
• Built-in safety flashlight
• 1 Touch FM Radio
• Lockable controls
• 1,024 Channel & 250 Zone capacity

Includes:

• R1 handheld radio
• Rechargeable battery
• USB charging cable / power adapter
• Belt clip
• Antenna

The R1 handheld radio is a lightweight, portable, digital/analog handheld radio. Featuring powerful industrial business band frequencies, the R1 is ready to get you talking.

Specification:

General:

• Frequency Range: 136-174MHz (VHF)
• Frequency Range: 400-470MHz (UHF)
• Channel Capacity: 1024
• Frequency Stability: ± 1ppm
• Operating Temperature: -20ºC ~ + 70ºC
• Voltage: 7.4V DC
• Weight: 242g (battery and antenna included)
• Dimension (H x W x D): 120 x 60 x 35mm

Transmitter:

• Power (High): 5W
• Power (Low): 1W
• Transmit Current (Analog): ‰¤ 1.6A
• Transmit Current (Digital): ‰¤ 0.9A
• Standby Current: 0.15A
• FM Modulation Mode: 11K0F3E @12.5KHz
• FM Modulation Mode: 14K0F3E @20KHz
• FM Modulation Mode: 16K0F3E @25KHz
• 4FSK Digital Mode: 12.5KHz Data Only: 7K60FXD
• 4FSK Digital Mode: 12.5KHz Data & Voice: 7K60FXW
• Modulation Distortion:
• Hum & Noise: ‰¥ 45dB @25KHz
• Hum & Noise: ‰¥ 40 dB @12.5KHz
• Adjacent Channel Power: ‰¤ -60dB @12.5KHz
• Audio Response: +1 ~ -3dB
• Antenna Port Spurious: 9KHz to 1GHz: ‰¤ -36dBm
• Antenna Port Spurious: 1GHz to 12.75 GHz: ‰¤ -30dBm
• Digital Protocol: DMR / ETSI-TS102 361-1, -2, -3

Receiver:

• Analog Sensitivity: 0.2μV @12dB SINAD
• Digital Sensitivity: 0.25μV (BER* 5%)
• Intermodulation Rejection: 60-62dB
• Sensitivity: 12dB @ -122dB
• Adjacent Channel Selectivity: ‰¤ -60dB @12.5KHz
• Co-channel Rejection: ‰¥ 65dB
• Spurious Response: ‰¥ 70dB
• Audio Response: +1 ~ -3dB
• Rated Audio Distortion:
• Audio Power: 1W
• Modulation Noise: ‰¥ 45dB @25KHz
• Modulation Noise: ‰¥ 40dB @12.5KHz
