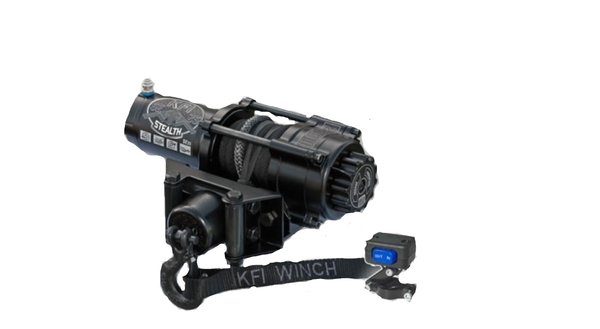

Can-Am 2500lbs Stealth Winch - KFI

Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your UTV or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. This 2500lb UTV Stealth Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI 1-Year Limited Warranty. The KFI SE25 Stealth Winch comes with everything you need other than an UTV model specific winch mount. Everything shown is included along with detailed installation instructions and hardware to mount your winch to a model specific UTV winch mount.

50' Synthetic Cable with 5' protective sheath and end loop #SYN19-S50

Take control of your winch with the included Mini-Rocker Switch (UTV-MR) that comes with an adjustable bracket to mount it to your UTV's handle bars and allows you to control your winch with the touch of your finger without ever letting go of your handle bars.

The all New Heavy Duty Electric Contactor (UTV-CONT) protects your UTV's electrical system and switches the power distribution of your winch that is controlled by your switches.

Included is our KFI Split Cable Hook Stopper (#UTV-SCHS) with the following benefits:

• Eliminates wear and tear on your rollers from the hook with can cause cable wear.
• Eliminates hook clatter from going down the trail.
• Protects the winch motor and gears from pulling the cable in too far and bottoming out on the rollers.
• Keeps tension on the hook to eliminate the cable becoming loose.
• Also has slits designed in it to work as an anti-kick back for the cable if your cable was to snap.
• Looks great.

Specifications:

ModelSE25 UTV Series

Rated Line Pull2500 lbs.

Motor12V DC, 1.2 hp Permanent Magnet

Gear Ratio171:1

Gear/TransmissionAll-metal Planetary Gear Drive

BrakeDynamic and Mechanical

Clutch (free spooling)All Metal Cam Activated Freespool

Drum Size1.5" (D) x 3.15" (L)

Cable3/16" (D) x 50' (L) Smoke color

FairleadMulti-directional Roller

ControlDeluxe Handlebar-Mounted Mini-Rocker Control Switch and a Heavy Duty Corded Remote Switch

Winch Dimensions12.67" L x 4.06" D x 4.2" H

Mount PlateFairlead Mount Only (A Model Specific Mount is necessary for your make and model UTV)

Mounting Bolt Pattern3.00" x 4.875" (4-Hole)

Recommended Battery12 Amp/hour minimum

Winch Weight22.7 lbs. (complete kit)
