Baja Designs 2024-2026 KTM 150/300 XC-W / 350/500 EXC-F / 450 XCF-W Squadron Pro LED Headlight Kit w/ Dimmer (D/C)

The Baja Designs 2024-2026 KTM 150/300 XC-W / 350/500 EXC-F / 450 XCF-W Squadron Pro LED Headlight Kit w/ Dimmer (D/C) delivers race-level illumination for KTM off-road motorcycles. Developed in partnership with Motominded, this premium headlight replacement provides exceptional vertical and horizontal light spread, giving riders outstanding visibility across technical trails, dual-sport adventures, and open desert terrain while maintaining a true plug-and-play installation.

The kit features a single Squadron Pro LED light producing 4,095 raw lumens for powerful forward illumination. The included dimmer allows riders to adjust brightness from approximately 95% down to 20% output, while the KTM-specific OEM connector and Hi-Low harness simplify installation and retain factory switch functionality. Baja Designs' exclusive uService technology also allows riders to customize the beam pattern with interchangeable lenses.

Features

• Squadron Pro LED: Race-level lighting performance.
• Variable Dimmer: Adjustable from 95% to 20% output.
• Driving/Combo Optics: Wide and long-range coverage.
• Plug-and-Play Design: Uses OEM KTM connector.
• uService Technology: Replaceable lenses and optics.

Lighting Performance

The Squadron Pro produces 4,095 raw lumens while drawing 41.4 watts and 3 amps, delivering exceptional illumination for aggressive off-road riding. The included Driving/Combo lens lights up Zones 1, 2, and 3 for balanced near- and long-range visibility, while an optional Spot lens can be installed for maximum distance projection during higher-speed riding. The included dimmer allows riders to adjust output from approximately 95% down to 20% to match changing riding conditions.

Installation

The kit is designed specifically for compatible 2024-2026 KTM motorcycles and installs using the included 2024+ KTM OEM connector and Hi-Low harness for a true plug-and-play installation. The supplied Motominded Squadron mounting bracket, Driving/Combo lens kit, dimmer harness, and mounting hardware eliminate the need for permanent wiring modifications. Bike must have 200W Stator.

Specifications

• Application: Vehicle Specific
• Light: Squadron Pro LED
• Light Quantity: One
• Beam Pattern: Driving/Combo (Included)
• Optional Beam Pattern: Spot (Lens Compatible)
• Lens Color: Clear
• Output: 4,095 Lumens
• Power Draw: 41.4W
• Current Draw: 3A
• Connector: 2024+ OEM KTM Connector
• Electrical System: D/C
• Color Temperature: 5000K Daylight
• Dimming Range: 95% - 20% Output

Why It Stands Out

The Baja Designs Squadron Pro LED Headlight Kit w/ Dimmer combines race-proven performance with adjustable brightness, giving riders the flexibility to adapt illumination for everything from technical single-track to high-speed desert terrain. Its powerful 4,095-lumen output and Driving/Combo beam pattern deliver excellent foreground and long-range visibility in a compact package.

Developed with Motominded, this complete plug-and-play system installs easily using the factory connector while delivering the durability, serviceability, and premium lighting performance expected from Baja Designs.

Fitment

• 2024-2026 KTM 150 XC-W
• 2024-2026 KTM 300 XC-W
• 2024-2025 KTM 350 EXC-F
• 2024-2026 KTM 450 XCF-W
• 2024-2025 KTM 500 EXC-F

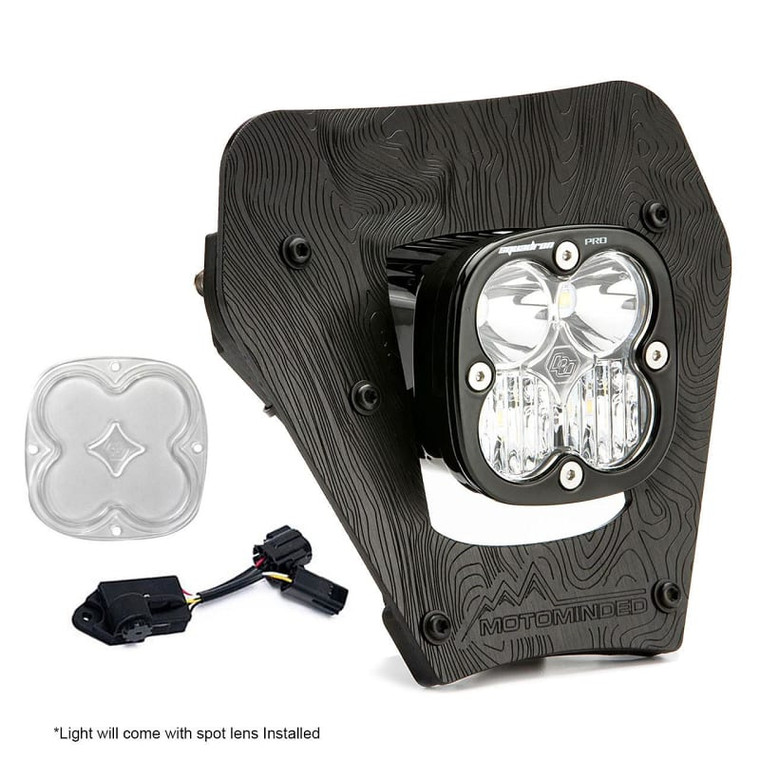

Includes

• One Squadron Pro Spot Clear Light with 2024+ OEM Connector
• One Dimmer Harness (95%-20% Output)
• One Motominded Squadron Bracket
• One Driving/Combo Clear Lens Kit
• All Necessary Mounting Hardware
