Baja Designs 2021-2026 Ford F-150 Raptor / Raptor 37 / Raptor R XL80 A-Pillar Light Kit

The Baja Designs 2021-2026 Ford F-150 Raptor / Raptor 37 / Raptor R XL80 A-Pillar Light Kit is a vehicle-specific auxiliary lighting upgrade engineered to deliver maximum output and exceptional visibility. Designed specifically for compatible Ford F-150 Raptor models, this complete kit enhances forward and peripheral illumination while maintaining a clean, factory-inspired appearance.

The kit includes a pair of XL80 LED lights, vehicle-specific A-pillar mounting brackets, interchangeable lens kits, a trigger switch wiring harness, and all required mounting hardware. The adjustable A-pillar mounting position allows the lights to be aimed precisely where additional illumination is needed.

Featuring next-generation LED technology and high-speed spot reflectors, the XL80 lights provide outstanding light output for demanding off-road conditions while preserving the aggressive styling of the Ford Raptor.

Features

• XL80 LED Lights: Includes two high-output auxiliary LED lights.
• Vehicle-Specific Mounts: Designed specifically for compatible Ford Raptor models.
• Interchangeable Lenses: Includes Spot and Wide Cornering lens kits.
• Driving/Combo Beam Pattern: Factory-equipped for balanced long-range and peripheral illumination.
• Adjustable A-Pillar Mount: Allows precise beam positioning.
• Complete Installation Kit: Includes wiring harness, brackets, and mounting hardware.

Purpose-Built A-Pillar Design

The A-pillar mounting position extends illumination beyond the factory headlights, improving visibility around corners and along the sides of the trail. Its elevated placement provides a broader field of view to help identify terrain changes and obstacles.

Vehicle-specific mounting brackets provide a secure installation while maintaining an integrated appearance that complements the Ford F-150 Raptor.

Lighting Performance

Each XL80 LED light produces 9,022 raw lumens using next-generation LED technology and high-speed spot reflectors that illuminate lighting zones 1, 2, and 3 while extending visibility into zone 4. The factory-installed Driving/Combo beam pattern provides a balanced mix of distance and peripheral lighting, while the included Spot and Wide Cornering lens kits allow the beam pattern to be customized for different driving conditions.

• 9,022 raw lumens per light
• Driving/Combo beam pattern installed
• Spot lens kits included
• Wide Cornering lens kits included

Baja Designs Lighting Technology

The XL80 LED lights incorporate Baja Designs' proven lighting technologies for dependable performance and long-term durability.

• uService® replaceable lenses and optics
• ClearView® optimized beam pattern
• MoistureBlock® waterproof, rainproof, and submersible construction
• CopperDrive® drives LEDs at 100%
• 5000K daylight color temperature

Installation

The kit includes vehicle-specific A-pillar mounting brackets, a trigger switch wiring harness, interchangeable lens kits, and all necessary mounting hardware for a straightforward installation.

Specifications

• Product Type: XL80 LED Light Pod
• Lights Included: 2
• Beam Pattern: Driving/Combo
• Lens Color: Clear
• Brightness (Per Light): 9,022 Raw Lumens
• Power (Per Light): 75.9W
• Current Draw (Per Light): 5.5A
• Lighting Type: Forward Projecting LED
• Housing Material: Hard Anodized and Powder Coated Cast Aluminum
• Bezel Material: Powder Coated Cast Aluminum
• Lens Material: Hardcoated Polycarbonate
• Mounting Hardware: Stainless Steel
• Overvoltage Protection: Built-In
• Average Rated Life: 49,930 Hours
• IP Rating: IP69K Waterproof (Up to 9 ft. and Pressure Washable)
• Impact Rating: IK10 Compliant
• Durability: Exceeds MIL-STD-810G Testing
• Dimensions (Per Light): 4.43 in. L x 4.43 in. H x 3.65 in. D

Why It Stands Out

This A-pillar light kit combines vehicle-specific fitment with the powerful output of XL80 LED lights to provide exceptional visibility in demanding environments. The included interchangeable lens kits allow the beam pattern to be tailored for different applications while maintaining a clean, integrated installation.

Supported by Baja Designs' advanced lighting technologies and complete installation hardware, this kit provides a durable and versatile auxiliary lighting solution for compatible Ford F-150 Raptor models.

Fitment

• 2021-2026 Ford F-150 Raptor
• 2024-2026 Ford F-150 Raptor 37
• 2024-2026 Ford F-150 Raptor R

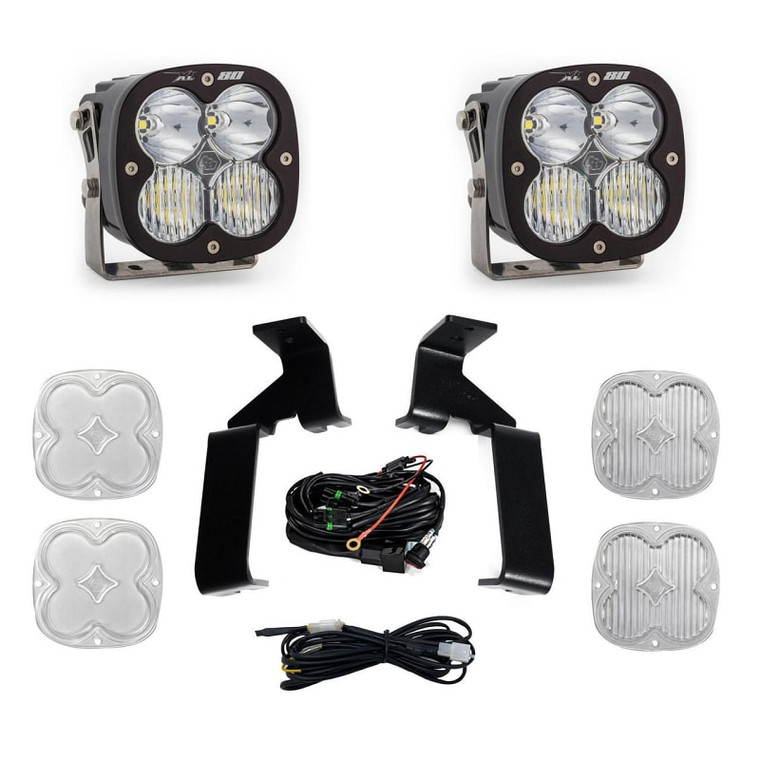

Includes

• 2 x XL80 LED Lights (Driving/Combo, Clear)
• 2 x A-Pillar Mounting Brackets
• 1 x Trigger Switch Wiring Harness (640180)
• 2 x XL Spot Lens Kits (Clear)
• 2 x XL Wide Cornering Lens Kits (Clear)
• All Necessary Mounting Hardware
