2021-2026 Ford Bronco / Bronco Raptor Squadron 2.0 Pro A-pillar Light Kit - Baja Designs

Baja Designs 2021-2026 Ford Bronco / Bronco Raptor Squadron 2.0 Pro A-Pillar Light Kit

The Baja Designs Squadron 2.0 Pro A-Pillar Light Kit provides a vehicle-specific auxiliary lighting solution for the Ford Bronco and Bronco Raptor. The two-light setup is designed specifically for the A-pillar, combining compact mounting with high-output Squadron 2.0 Pro lighting.

Each Squadron 2.0 Pro produces 5,921 lumens at 65W and uses next-generation optics for improved beam control, greater distance, wider coverage, and reduced light spill. The kit includes vehicle-specific A-pillar plates, wiring, alternate lens kits, and mounting hardware for a complete installation.

The Squadron 2.0 Pro also features selectable backlighting with nine colors, clip-in reflectors for simplified lens changes, a redesigned gasket for improved sealing, and a durable 4-pin Deutsch-style connector.

Features

• High Light Output: 5,921 lumens per light
• Refined Optics: Greater distance and wider coverage
• Selectable Backlight: Nine selectable color options
• Clip-In Reflectors: Secure during lens changes
• Adjustable Mounting: Increased vertical adjustability
• Deutsch Connector: Durable 4-pin electrical connection

Lighting Performance

The Squadron 2.0 Pro uses next-generation optics designed to improve beam control and efficiency. Its refined optical system projects a cleaner, farther-reaching, and wider beam while minimizing unwanted light spill.

The kit comes configured with Spot lenses and also includes Driving Combo and Wide Cornering lens kits, allowing the beam pattern to be changed according to the desired application.

Squadron 2.0 Pro Design

The Squadron 2.0 Pro features updated lens patterns optimized for its redesigned optics, along with a standard 4-pin Deutsch-style connector for improved wiring harness durability. A color-selectable backlight provides nine selectable colors.

The uService design incorporates clip-in reflectors that remain secure during lens changes. A redesigned gasket improves sealing and protection against the elements.

Mounting and Installation

The kit includes two A-pillar plates designed specifically for the Ford Bronco and Bronco Raptor. The mounting design provides increased vertical adjustability for more precise light aiming.

Wiring is available with either a toggle switch harness or an upfitter harness. For the Bronco Raptor, the manufacturer notes that the upfitter wiring has the AUX1 and AUX3 colors switched compared with the regular Bronco.

Specifications

• Lumens: 5,921 per light
• Watts/Amps: 65W/4.7A at 13.8V per light
• Operational Voltage: 12-32V
• IP Rating: IP69K

Lighting Technology

• uService®: Replaceable lenses and optics
• ClearView: Directs light where it is needed
• MoistureBlock: Waterproof, rainproof, and submersible
• Direct-Sink: Direct thermal path technology
• 5000K Daylight: Natural color intended to reduce driver fatigue

Why It Stands Out

This A-pillar kit combines two high-output Squadron 2.0 Pro lights with vehicle-specific mounting and wiring components for the Ford Bronco platform. The refined optics, adjustable mounting, selectable backlighting, and serviceable lens system provide a versatile auxiliary lighting configuration.

The included Driving Combo and Wide Cornering lens kits provide additional beam pattern options, while the choice of toggle or upfitter wiring allows the installation to accommodate different vehicle wiring configurations.

Fitment

• 2021-2026 Ford Bronco
• 2022-2024 Ford Bronco Raptor

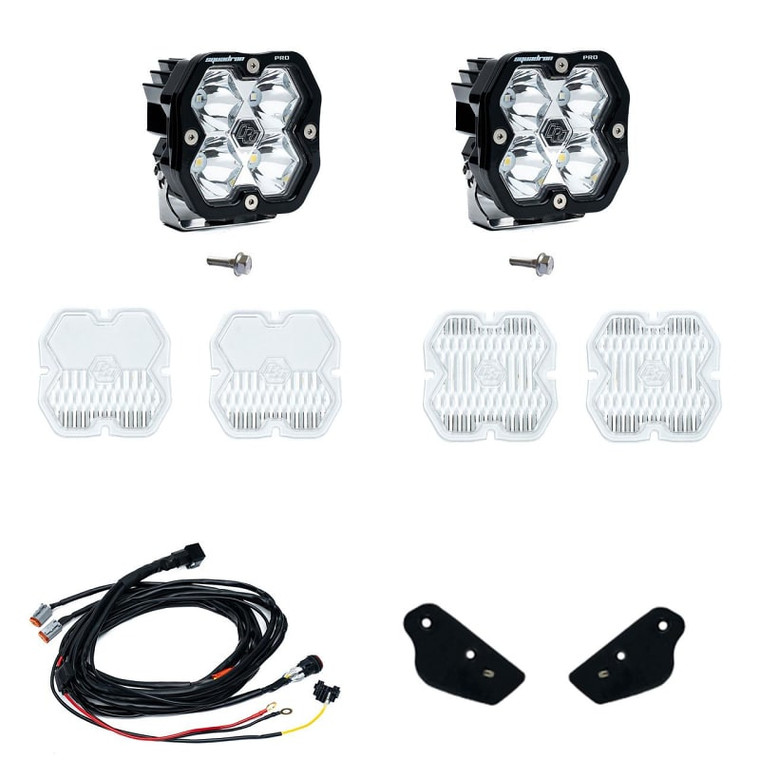

Includes

• Two Squadron 2.0 Pro (Clear/Spot)
• Two A-Pillar Plates
• One Toggle Switch 4-pin Harness or Upfitter Harness
• One Deutsch 4-Pin 55" Splitter (upfitter kit only)
• Two Squadron 2.0 Lens Kit (Clear/Driving Combo)
• Two Squadron 2.0 Lens Kit (Clear/Wide Cornering)
• All necessary mounting hardware

Baja Designs California Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
