Baja Designs 2021-2023 Ford F-150 5XL Linkable Bumper Light Bar Kit

The Baja Designs 2021-2023 Ford F-150 5XL Linkable Bumper Light Bar Kit is a vehicle-specific lighting upgrade designed to provide powerful forward illumination while maintaining a clean, integrated appearance. Utilizing the innovative XL Linkable system, this bumper-mounted kit delivers a customizable lighting solution that enhances visibility without creating hood glare.

The 5XL Linkable light bar features multiple beam patterns that work together to provide smooth, balanced light distribution. Individual light modules can be adjusted independently, allowing the light bar to be configured in either a straight or curved arrangement to complement the front profile of the truck and meet specific lighting preferences.

Designed specifically for the 2021-2023 Ford F-150, this complete kit combines premium LED performance with vehicle-specific mounting hardware for a professional installation.

Features

• 5XL Linkable Light Bar: Multi-pattern LED lighting system.
• Adjustable Design: Independent vertical and horizontal aiming.
• Bumper-Mounted System: Reduces hood glare during nighttime driving.
• Vehicle-Specific Fitment: Engineered for 2021-2023 Ford F-150.
• Custom Wiring Options: Available with toggle or upfitter harness.

Customizable Lighting Performance

The XL Linkable system allows each light to be adjusted independently, providing up to 45 degrees of vertical pitch adjustment and independent horizontal positioning. This flexibility allows the light bar to be configured in either a straight or arced layout while maintaining a smooth blend of multiple beam patterns.

Mounted low on the front bumper, the system minimizes hood glare and places usable light directly where it is needed for improved nighttime visibility on and off the road.

Vehicle-Specific Design

This kit is engineered specifically for the 2021-2023 Ford F-150, providing a precise fit with application-specific mounting brackets that integrate cleanly with the factory front bumper.

The bumper-mounted design enhances lighting performance while maintaining a factory-style appearance and preserving the truck's overall styling.

Construction and Technology

The 5XL Linkable light bar features hard anodized and powder-coated cast aluminum housings, hardcoated polycarbonate lenses, stainless steel mounting hardware, and Baja Designs' signature technologies including uService®, ClearView optics, MoistureBlock waterproof construction, CopperDrive LED technology, and a 5000K daylight color temperature.

• Beam Pattern: Multi-Pattern
• Light Quantity: Five XL LED lights
• Light Output: 15,750 lumens
• Power Consumption: 130 watts
• Current Draw: 10 amps
• Dimensions: 32.99 in. L × 4.43 in. H × 2.8 in. D
• Water Resistance: IP69K

Installation

This kit is designed specifically for the 2021-2023 Ford F-150 and installs using vehicle-specific bumper mounting brackets.

Depending on the selected configuration, the kit is available with either a standard toggle switch wiring harness or an upfitter wiring harness. The XL Linkable system also allows each light pod to be individually aimed after installation for precise beam adjustment.

Why It Stands Out

The 5XL Linkable Bumper Light Bar Kit combines customizable beam positioning with powerful multi-pattern illumination, allowing users to tailor the lighting setup to their specific driving environment. Its bumper-mounted design also minimizes hood glare while delivering exceptional forward visibility.

With premium construction, advanced lighting technology, and vehicle-specific engineering, this kit provides a durable and highly adaptable lighting upgrade for compatible Ford F-150 models.

Fitment

• 2021-2023 Ford F-150

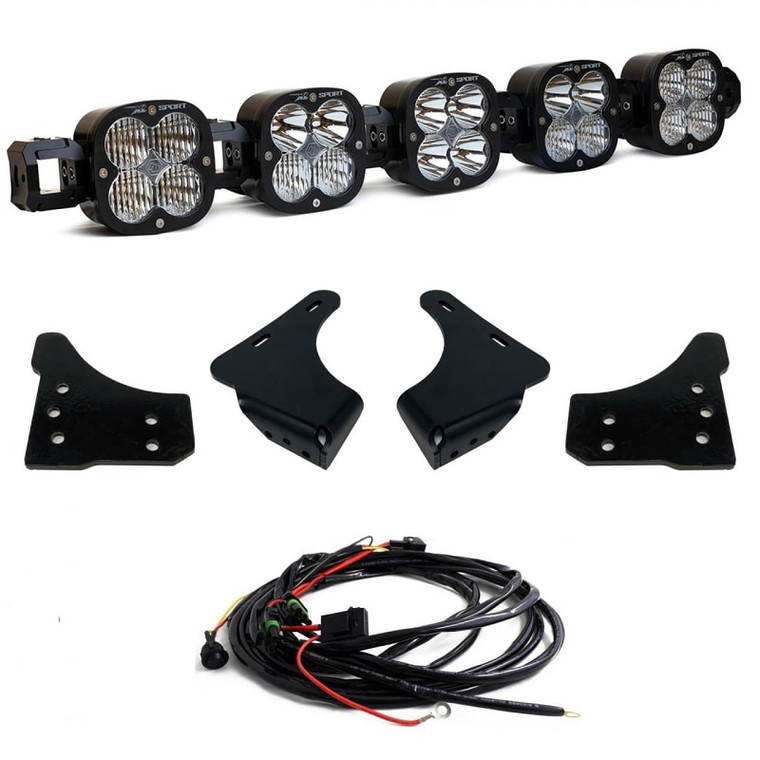

Includes

• One 5XL Linkable LED light bar (Clear, Multi-Pattern)
• Two mounting brackets
• One toggle switch harness or one upfitter harness
• One pre-load kit
• Five black rock guards
• All necessary mounting hardware
