2019-2023 Ford Ranger Squadron Pro A-pillar Light Kit - Baja Designs

Baja Designs 2019-2023 Ford Ranger Squadron Pro A-Pillar Light Kit

The Baja Designs 2019-2023 Ford Ranger Squadron Pro A-Pillar Light Kit is a vehicle-specific auxiliary lighting system engineered to improve forward visibility during off-road adventures and low-light driving conditions. Designed specifically for the 2019-2023 Ford Ranger, this kit mounts a pair of high-performance Squadron Pro LED lights to the A-pillars for excellent trail illumination.

Each Squadron Pro LED light features a Spot beam pattern and produces 4,095 raw lumens while drawing 40 watts of power. The kit includes vehicle-specific A-pillar brackets, a relay-style wiring harness with a toggle switch, and all necessary mounting hardware for a straightforward installation without drilling or cutting.

Built with Baja Designs' proven lighting technologies and premium construction, this complete lighting kit provides reliable performance with waterproof protection, replaceable lenses and optics, and a natural 5000K daylight color temperature.

Features

• Vehicle-Specific Design: Engineered for the 2019-2023 Ford Ranger.
• Squadron Pro LED Lights: Two high-output Spot beam auxiliary lights.
• No Cutting Required: Bolt-on installation using A-pillar brackets.
• Relay Wiring Harness: Includes toggle switch for easy operation.
• Replaceable Optics: uService technology allows lens customization.
• Premium LED Technology: ClearView, MoistureBlock, and CopperDrive technologies.

High-Performance Illumination

The included Squadron Pro LED lights provide focused Spot beam performance for long-distance visibility. Each light delivers 4,095 raw lumens while utilizing advanced Cree LED technology for dependable illumination.

• 4,095 raw lumens per light
• 40-watt LED output
• Spot beam pattern
• 5000K daylight color temperature

Vehicle-Specific Installation

The kit includes application-specific A-pillar brackets that mount securely to the vehicle without drilling or cutting. A relay-style wiring harness with an integrated toggle switch simplifies installation and operation.

All necessary mounting hardware is included for a complete installation.

Construction and Technology

Each Squadron Pro light features a hard anodized and powder-coated cast aluminum housing, hard-coated polycarbonate lens, stainless steel mounting hardware, and built-in overvoltage protection for dependable durability.

Baja Designs incorporates proprietary technologies including uService replaceable lenses and optics, ClearView optics, MoistureBlock waterproof protection, CopperDrive LED technology, and a 5000K daylight color temperature for reliable performance.

Specifications

• Product Type: Squadron Pro LED Light Pod
• Light Quantity: 2
• Beam Pattern: Spot
• Brightness: 4,095 lumens (per light)
• Power Draw: 41.4W (per light)
• Current Draw: 3A
• Lighting Technology: Cree LED (2 Types)
• Lighting Quantity: 4 LEDs per light
• Lighting Type: Forward Projecting
• Housing Material: Hard Anodized and Powder Coated Cast Aluminum
• Housing Color: Black
• Bezel Material: Powder Coated Cast Aluminum
• Lens Material: Hardcoated Polycarbonate
• Lens Color: Clear
• Mounting Hardware: Stainless Steel
• Overvoltage Protection: Built-In
• Average Rated Life: 49,930 hours
• Water Resistance: IP69K
• Impact Resistance: IK10 Compliant
• Durability: Exceeds MIL-STD-810G Testing
• Dimensions (Each Light): 3.07 in. L x 3.07 in. H x 2.77 in. D
• Weight (Each Light): 0.75 lb

Why It Stands Out

This A-pillar light kit combines high-output Squadron Pro LED performance with a vehicle-specific mounting system that requires no drilling or cutting. The Spot beam pattern provides excellent long-range illumination while maintaining a clean, factory-style installation.

With premium materials, replaceable optics, waterproof construction, and a complete installation package, this kit offers a dependable lighting upgrade for the 2019-2023 Ford Ranger.

Fitment

• 2019-2023 Ford Ranger

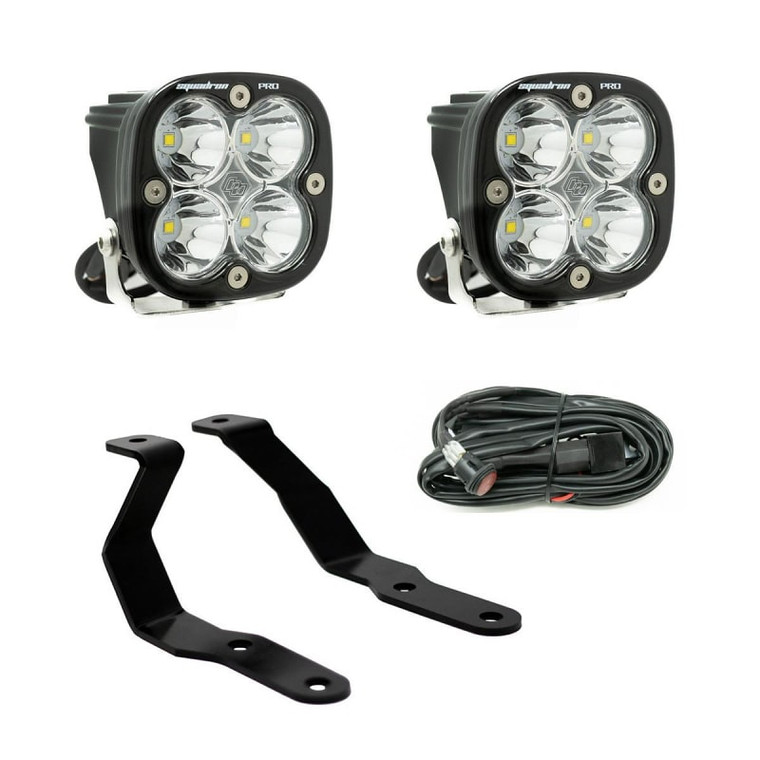

Includes

• (2) Squadron Pro LED Lights - Spot Beam
• (2) A-pillar mounting brackets
• (1) Relay-style wiring harness with toggle switch (640117)
• All necessary mounting hardware
