2016-2018 Chevrolet Silverado 1500 Squadron Sport Fog Pocket Light Kit - Baja Designs

Baja Designs 2016-2018 Chevrolet Silverado 1500 Squadron Sport Fog Pocket Light Kit

The Baja Designs 2016-2018 Chevrolet Silverado 1500 Squadron Sport Fog Pocket Light Kit is a vehicle-specific upgrade that delivers improved fog lighting performance while maintaining a clean, factory-style appearance. Designed for compatible Chevrolet Silverado 1500 models, this kit installs into the factory fog light locations and provides significantly greater output than the original setup.

Equipped with a pair of Squadron Sport LED light pods, this kit produces a combined 6,300 lumens and includes the required wiring to connect directly to the factory fog light switch for a simple plug-and-play installation. Built with Baja Designs' proven lighting technologies and rugged construction, it offers dependable performance in demanding driving conditions.

Whether driving in fog, rain, dust, or low-light environments, this fog pocket kit enhances forward visibility while preserving the factory fit and finish of the vehicle.

Features

• Factory Fog Pocket Fit: Installs in the original fog light locations.
• Plug-and-Play Wiring: Connects directly to the factory fog light switch.
• Dual Squadron Sport Lights: Delivers a combined 6,300 lumens of output.
• Wide Cornering Beam: Provides broad foreground illumination.

Vehicle-Specific Design

This kit is engineered specifically for the 2016-2018 Chevrolet Silverado 1500, providing an integrated installation that maintains the factory appearance of the front bumper.

The included mounting components and vehicle-specific wiring simplify installation while retaining OEM fog light operation.

Lighting Performance

The included Squadron Sport LED light pods feature a Wide Cornering beam pattern with clear lenses to provide broad, even illumination in front of the vehicle. Each light produces 3,162 lumens for a combined output of approximately 6,300 lumens.

• Wide Cornering beam pattern
• 3,162 lumens per light
• Approximately 6,300 lumens combined
• 5000K daylight color temperature

Construction and Durability

Each Squadron Sport light features a powder-coated cast aluminum housing and bezel, a hard-coated polycarbonate lens, stainless steel mounting hardware, and built-in overvoltage protection.

The lights incorporate Baja Designs' ClearView, MoistureBlock, CopperDrive, and uService technologies while exceeding MIL-STD-810G testing, achieving IK10 mechanical impact resistance, and meeting IP69K standards for water and pressure-wash resistance.

Installation

The supplied wiring is designed to connect directly to the factory fog light switch, providing a plug-and-play installation. The complete kit is designed to fit the factory fog pocket locations without extensive modifications.

Specifications

• Light Pods: Squadron Sport LED (2)
• Beam Pattern: Wide Cornering
• Brightness: 3,162 lumens per light
• Combined Output: Approximately 6,300 lumens
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Lighting Mode: Beam
• Lens Color: Clear
• Housing Color: Black
• Housing Material: Powder-Coated Cast Aluminum
• Bezel Material: Powder-Coated Cast Aluminum
• Lens Material: Hard-Coated Polycarbonate
• Wattage: 30.360W per light
• Amperage: 2.200A per light
• Average Rated Life: 49,930 hours
• Dimensions (Each): 3.070 in. L x 3.070 in. H x 2.770 in. D
• Weight (Each): 0.750 lb

Why It Stands Out

This fog pocket kit combines a factory-style installation with the proven performance of Baja Designs Squadron Sport LED lights, delivering substantially improved fog lighting while maintaining OEM functionality.

Its plug-and-play wiring, vehicle-specific fitment, and durable construction make it a practical lighting upgrade for compatible Chevrolet Silverado 1500 models.

Fitment

• 2016-2018 Chevrolet Silverado 1500

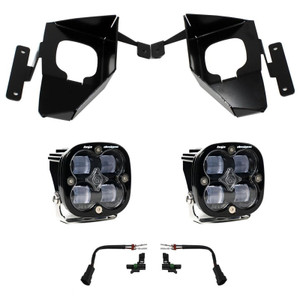

Includes

• Two Squadron Sport LED light pods
• Vehicle-specific fog pocket mounting brackets
• Plug-and-play wiring adapters
• Mounting hardware
