Baja Designs 2014-2021 Toyota Tundra OnX6+ 30" Grille Lower Light Bar Kit

The Baja Designs 2014-2021 Toyota Tundra OnX6+ 30" Grille Lower Light Bar Kit is a vehicle-specific lighting upgrade that delivers exceptional forward illumination while maintaining a clean, factory-style appearance. Designed specifically for the 2014-2021 Toyota Tundra, this kit positions the OnX6+ 30-inch LED light bar behind the lower grille for added protection without altering the truck's exterior styling.

Equipped with a Driving/Combo beam pattern and selectable high and low output modes, the OnX6+ provides powerful illumination across lighting zones 1, 2, and 3 for improved visibility in a variety of off-road conditions. The complete kit includes the light bar, vehicle-specific mounting brackets, a wiring harness with mode switch, and all required mounting hardware for a straightforward installation.

Built with Baja Designs' advanced lighting technologies and premium construction, this grille-mounted light bar kit offers dependable performance, exceptional durability, and a seamless factory-inspired fit.

Features

• Vehicle-Specific Fit: Designed for the 2014-2021 Toyota Tundra.
• OnX6+ LED Light Bar: Includes a 30-inch Driving/Combo light bar.
• High and Low Modes: Dual-output lighting for added versatility.
• Hidden Installation: Mounts behind the lower grille for a clean appearance.

Vehicle-Specific Design

This kit is engineered specifically for the 2014-2021 Toyota Tundra, allowing the OnX6+ light bar to mount securely behind the factory lower grille. The concealed installation provides additional protection while maintaining the truck's original styling.

The application-specific brackets create a secure installation without requiring drilling or permanent vehicle modifications.

Lighting Performance

The included OnX6+ 30-inch LED light bar produces up to 31,910 lumens in High mode and 25,450 lumens in Low mode through Baja Designs' Driving/Combo beam pattern. The combination of spot and driving optics delivers excellent long-range projection along with broad foreground illumination across lighting zones 1, 2, and 3.

• Driving/Combo beam pattern
• 31,910 lumens (High)
• 25,450 lumens (Low)
• High/Low beam functionality

Construction and Technology

The OnX6+ light bar features an aircraft-grade aluminum housing with Mil-Spec hard anodizing, a billet machined aluminum bezel, hard-coated polycarbonate lens, stainless steel mounting hardware, and built-in overvoltage protection for dependable long-term performance.

It also incorporates Baja Designs' uService, ClearView, MoistureBlock, and CopperDrive technologies while exceeding MIL-STD-810G durability testing, meeting IK10 impact resistance standards, and carrying an IP69K rating for water and pressure-wash resistance.

Installation

The kit includes vehicle-specific mounting brackets, a wiring harness with mode switch (Part No. 640119), and all necessary mounting hardware for a straightforward installation. The concealed mounting system installs behind the lower grille without requiring drilling or permanent vehicle modifications.

Specifications

• Product Type: OnX6+ 30-Inch LED Light Bar Kit
• Light Quantity: One OnX6+ 30-Inch LED Light Bar
• Beam Pattern: Driving/Combo
• Brightness: 31,910 Lumens (High); 25,450 Lumens (Low)
• Lighting Modes: High Beam / Low Beam
• Lighting Quantity: 18 LEDs
• Lighting Technology: LED
• Lighting Type: Forward Projecting
• Description: Straight; Driving/Combo; Clear
• Lens Color: Clear
• Housing Color: Black
• Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
• Bezel Material: Billet Machined Aluminum
• Lens Material: Hard-Coated Polycarbonate
• Power Consumption: 281W (High); 225W (Low)
• Amperage: 21.7A (High); 17.1A (Low)
• Average Rated Life: 49,930 Hours
• Dimensions: 20 in. L × 2.69 in. H × 4.29 in. D
• Weight: 11.45 lb
• Overvoltage Protection: Built-In
• Mounting Hardware Included: Yes
• Mounting Hardware Material: Stainless Steel
• Water Resistance: IP69K
• Impact Resistance: IK10 Compliant
• Durability: Exceeds MIL-STD-810G

Why It Stands Out

This grille-mounted lighting system combines the exceptional performance of the OnX6+ LED light bar with a concealed, vehicle-specific installation that preserves the factory appearance of the Toyota Tundra. The Driving/Combo optics and dual-output modes provide outstanding visibility across a wide range of driving conditions.

With premium construction, advanced lighting technologies, and a no-drill installation, this kit delivers a durable and professional lighting upgrade for compatible Tundra models.

Fitment

• 2014-2021 Toyota Tundra

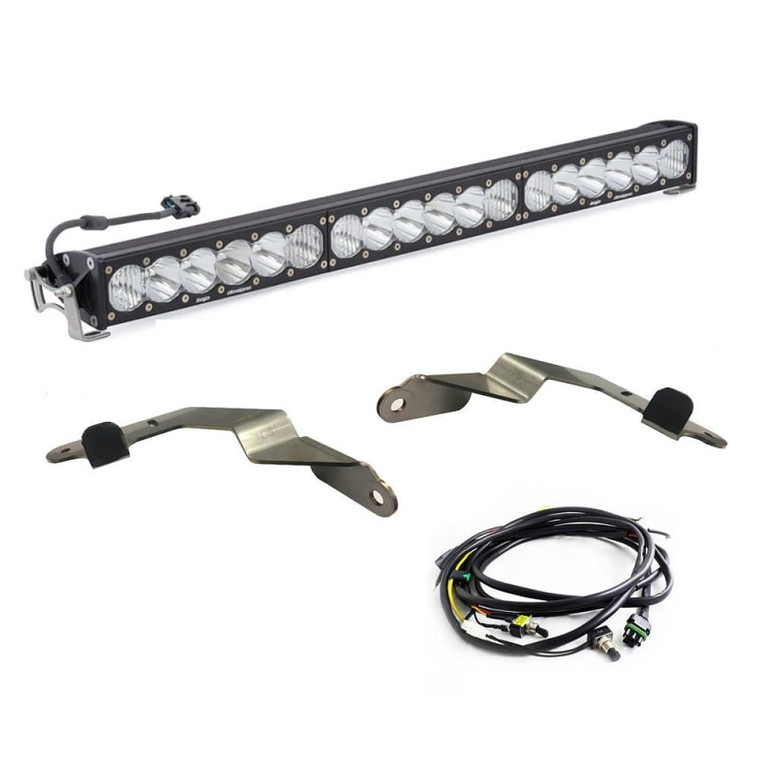

Includes

• One OnX6+ 30-inch Driving/Combo LED light bar (Clear)
• Two mounting brackets
• Wiring harness with mode switch (640119)
• All necessary mounting hardware
