Baja Designs 2014-2021 Toyota RAV4 / Highlander Squadron-R 2.0 Sport Fog Pocket Light Kit

The Baja Designs Squadron-R 2.0 Sport Fog Pocket Light Kit provides a direct-fit LED fog light upgrade for select Toyota RAV4 and Highlander models. The kit combines vehicle-specific mounting and wiring components with two Squadron 2.0 Sport lights for a clean, factory-style installation.

Each Squadron 2.0 Sport produces 3,200 lumens at 30W and uses next-generation optics for greater distance, wider coverage, improved beam control, and reduced light spill. The Wide Cornering pattern is available with either a Clear or Baja Amber lens for different lighting preferences.

The lights also feature selectable RGBW backlighting with nine color options, clip-in reflectors for improved serviceability, a redesigned gasket for enhanced sealing, and a durable 4-pin Deutsch connector.

Features

• High Light Output: 3,200 lumens per light
• Wide Cornering: Available in Clear or Baja Amber
• Refined Beam Pattern: Greater distance and wider coverage
• RGBW Backlight: Nine selectable color options
• uService Reflectors: Clip-in design simplifies lens changes
• Improved Sealing: Redesigned gasket protects against elements

Lighting Performance

The Squadron 2.0 Sport uses redesigned optics to deliver a refined beam pattern with greater distance, wider coverage, and reduced light spill. Its Wide Cornering pattern is suited to applications requiring broader illumination.

Each light operates at 30W/2.2A at 13.8V and produces 3,200 lumens, providing high-output illumination from the factory fog light location.

Construction and Design

The Squadron 2.0 Sport features a redesigned gasket to improve sealing and protection against the elements. Clip-in reflectors remain secure during lens changes, improving serviceability.

A standard 4-pin Deutsch connector provides a durable wiring connection, while the redesigned mounting bracket allows greater vertical adjustability. The integrated RGBW backlight provides nine selectable colors.

Installation

The kit is designed as a direct-fit, plug-and-play fog light upgrade for the specified Toyota applications. Vehicle-specific mounting brackets and wiring adaptors are included, with the adaptors allowing use of the factory fog switch.

The kit also includes a backlight add-on harness, inline backlight switch adapter, and all necessary mounting hardware.

Specifications

• Lumens: 3,200 per light
• Watts/Amps: 30W/2.2A at 13.8V per light
• Operational Voltage: 12-32V
• IP Rating: IP69K

Lighting Technology

• uService®: Replaceable lenses and optics
• ClearView: Directs light where it is needed
• MoistureBlock: Waterproof, rainproof, and submersible
• Direct-Sink: Direct thermal path technology
• 5000K Daylight: Natural color intended to reduce driver fatigue

Why It Stands Out

This fog pocket light kit combines high-output Squadron 2.0 Sport lighting with vehicle-specific mounting and wiring for a clean Toyota installation. The refined optics, Wide Cornering pattern, selectable backlighting, and serviceable reflector design provide a versatile auxiliary lighting configuration.

Fitment

• 2016-2021 Toyota RAV4
• 2014-2019 Toyota Highlander

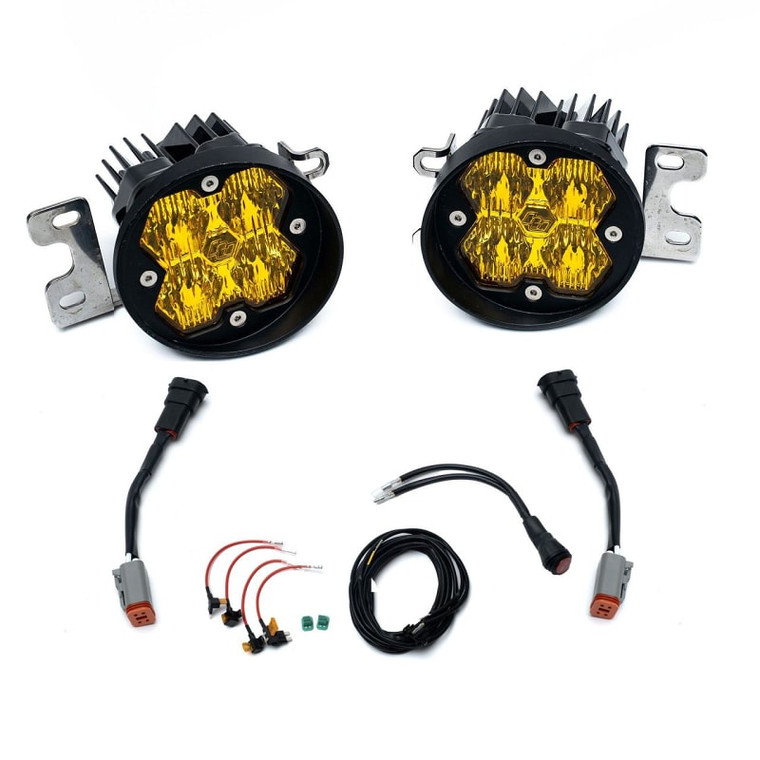

Includes

• Two Squadron 2.0 Sport; Wide Cornering Clear or Baja Amber
• Two Mounting Brackets
• Two Wiring adaptors – allows use of factory fog switch
• One Wiring harness – Backlight add-on
• One Wiring Harness, Inline backlight switch adapter
• All necessary mounting hardware
