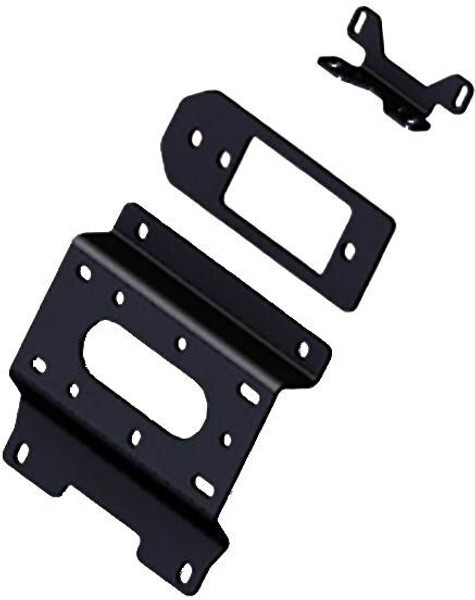

KFI Textron Prowler Pro Winch Mount - 101670

KFI Textron Prowler Pro Winch Mount (101670)

Designed to work with both standard 4.875" and WIDE 6.000" or 6.600" bolt pattern fairleads

Mount Designed to work with the following Winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
• KFI: AS-50 / AS-50w
• WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
• WARN:VRX 45 / VRX 45-S
• WARN:AXON 35 / 35-S / 45RC
• WARN:AXON 45 / 45-S / 55 / 55-S
• WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN:RT40 / XT40
• WARN: Vantage 2000-3000lbs / Provantage 2500-3500lbs
• WARN: Vantage 4000lbs / Provantage 4500lbs (Will use WIDE fairlead that comes with your winch.)
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / Terra 45 / A3500 / LT2000 / LT2500 / LT3000 / LT4000ATV / LT4000UTV
• MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
• CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND: 2-Hole Winches
• BADLAND: Standard Winches
• BADLAND: WIDE Winches
• CHAMPION : 2-Hole Winches
• CHAMPION : Standard Winches
• CHAMPION : WIDE Winches
• KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
• KEEPER CORP. TRAKKER :KT2000
• Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• SMITTYBILT :XRC 2.0
• SMITTYBILT :XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series)All with 3.00" x 4.875" Bolt Pattern mount-up
• All with 3.00" x 6.600" Bolt Pattern mount-up
• Traveller:1078311
• Traveller:1078088 / 1078302
• Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF
• Possibly many others with the below standard mounting patterns, call to confirm.

4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
4-Hole WIDE (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern)
2-Hole (3.10" with rollers that are 4.875" bolt pattern)

• QUADBOSS: RP25 / RP35

SPECIFICATIONS

• 100% MADE IN USA
• Constructed of 3/16" steel
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability
• Very easy to install
• Complete installation instructions included
• Satisfaction guaranteed
• Roller fairlead and winch not included.

FITMENT

• 2018-20 Prowler Pro
• 2019-20 Prowler Pro Crew
• CUV82
• CUV85
• CUV102 D
• CUV105 D
• 2019-20 Hauler 4x4
• 2019-20 Hauler 4x4 Crew
• 2020 800SX
• 2020 800SX Crew
